Product Overview

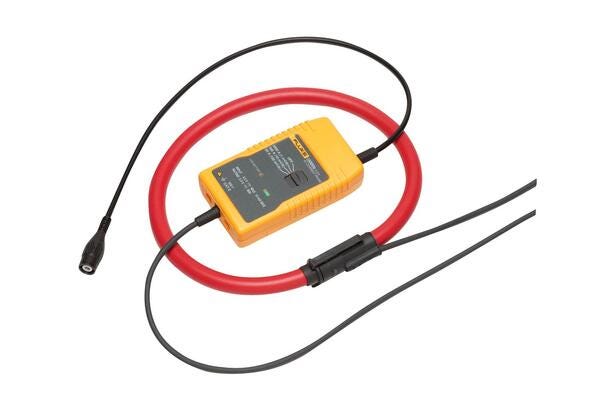

This AC current clamp from Fluke is the Fluke i3000s Flex-36 (Part#: 2584901), based on the Rogowski principle for AC current measurement. The Fluke i3000s Flex-36 measures up to 3000 A AC rms via a flexible measuring head of 915 mm (36 in) and provides AC output via a safety-rated BNC connection.Functionality and Connectivity
- Three switchable current ranges: 30 A, 300 A, and 3000 A ac rms.
- AC-coupled output sensitivity: 100 mV/10 mV/1 mV per A (specified in the datasheet).
- Output via 0.5 m cable terminated with safety BNC; supplied with BNC-to-4 mm banana plug safety adapter.
- Large measuring head (flexible) for access in confined areas; head cable length 915 mm.
Typical Applications
The description in the manufacturer's material indicates specific use cases for the Fluke i3000s Flex-36: the device can be used to measure current up to 3000 A in conjunction with oscilloscopes, recorders, or data loggers. These applications are directly mentioned in the manufacturer's documentation.Documentation
For technical details and the complete specification list, please refer to the manufacturer's datasheet: See datasheet from the manufacturer.Specifications
- Product: Fluke i3000s Flex-36 (Part#: 2584901)
- Measurement Principle: Rogowski principle
- Max. Measurement: 3000 A AC rms
- Measuring Head: flexible, 915 mm (36 in) circumference/head cable length
- Current Ranges: 30 A / 300 A / 3000 A ac rms
- Output Sensitivity (AC-coupled): 100 mV / 10 mV / 1 mV per A
- Output Connection: 0.5 m cable with safety BNC; included BNC-to-4 mm banana adapter
- Frequency Range: 10 Hz to 50 kHz (-3 dB)
- Basic Accuracy: ±1% of range (45 Hz to 65 Hz) @ +25 °C
- Linearity: ±0.2% (10% to 100% of range)
- Load Impedance: min. 100 kΩ
- Noise: 8 mV ac rms (60 A), 2 mV ac rms (300 A/3000 A)
- Phase Error: < ±1° (45–65 Hz), ±10° at 20 kHz
- Safety Rating: CAT III 600 V
- Head Cable Diameter: 14.3 mm; bend radius: 38.1 mm
- Cable Length (head to electronics): 2 m
- Power Supply: 2 x AA (MN1500 LR6), approx. 400 hours operation, low battery indicator
- Operating Temperature: Head -20 °C to +90 °C; Electronics -20 °C to +85 °C
- Weight: Head 180 g; Electronics 190 g
Sources
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
