Product Overview

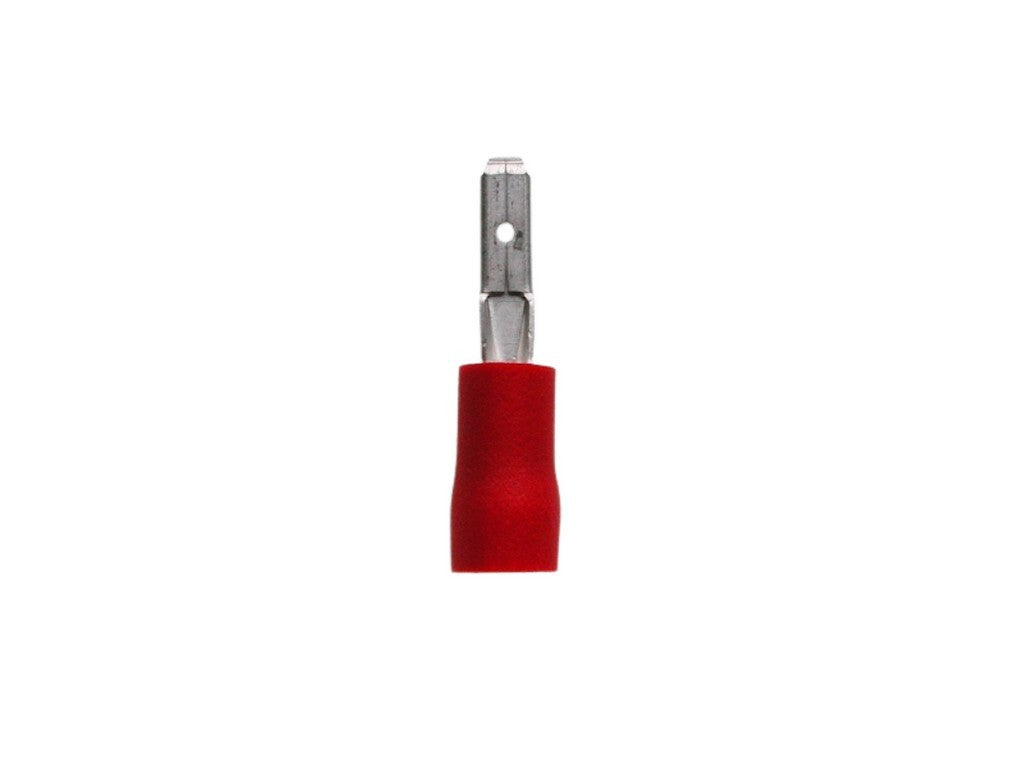

The F615288D is a red, partially insulated flat plug (Flachstecker) from EISENACHER designed for terminals on conductors in the size range of 0.5–1.5 mm². The product is specified on the manufacturer's website as PVC with Iso-Crimp and is supplied as a crimpable contact plug for electrical connections.Function and Application
As a partially insulated flat plug, the F615288D functions as a crimpable plug connection, where the conductor end is inserted into the contact area and mechanically and electrically secured by crimping (Iso-Crimp). The PVC insulation covers parts of the contact, and the blade's geometry is designed for standardized connection points for flat plugs of the specified dimensions.Design and Materials
- Contact material: Ms, E-Cu with galvanic tin plating (gal Sn)
- Insulation material: PVC
- Colour: red
Specifications
- Manufacturer: EISENACHER
- Manufacturer item number: F615288D
- Type: Partially insulated flat plug (Flachstecker)
- Conductor size: 0.5–1.5 mm²
- Insulation: PVC
- Contact material: Ms, E-Cu, gal Sn
- Iso-Crimp: specified by the manufacturer
- Dimensions (in mm): l1 = 22.0; l2 = 7.5; d = 4.1; b = 2.9
- Blade: thickness 0.40 mm; size 2.8 × 0.8 mm
- Colour: red
- EAN: 4251364509463
- Packaging quantity (VPE): 1,000
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
