FEV350 EV Charging Station Analyzer TYPE 1 & 2

Product Overview

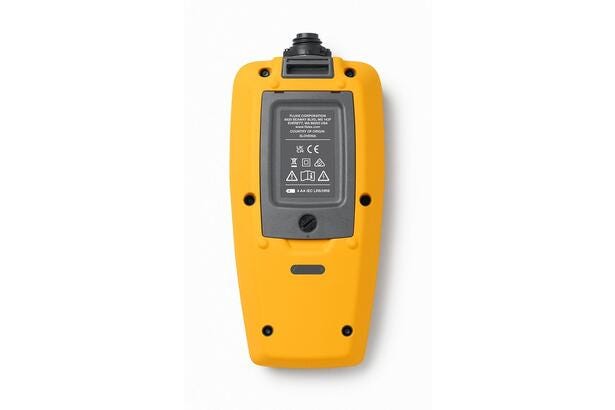

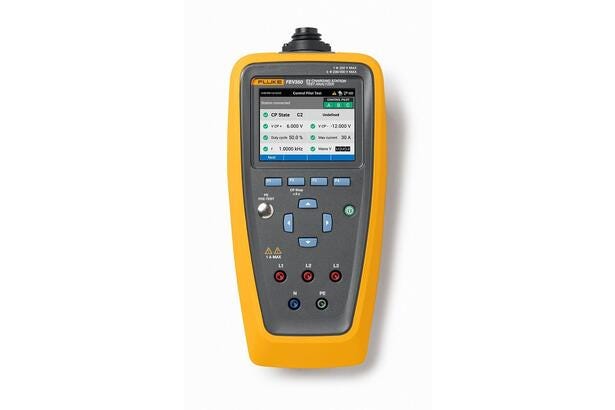

This analyzer from Fluke, the Fluke FEV350, is a measuring instrument for safety and functional testing of AC electric vehicle charging stations with Type 1 and Type 2 connectors. The Fluke FEV350 performs predefined test sequences and displays pass/fail indications for each measurement on the color display.

Features

• PE (protective earth) pre-test to check for hazardous voltage
• Visual inspection via built-in checklist
• 30 mA RCD and 6 mA RDC-DD trip tests
• Measurement of nominal voltage and phase sequence
• Control Pilot (CP) automatic simulation and waveform analysis
• Proximity Pilot (PP) simulation and fault simulation
• Wireless integration via Bluetooth with compatible Fluke multifunction installation testers for earth bond, insulation, and loop/line impedance

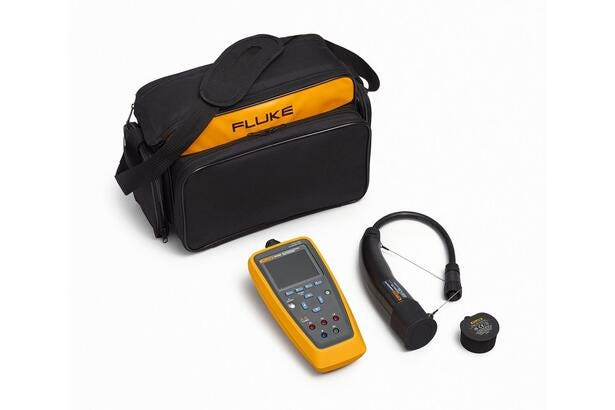

• Offered in various kit configurations (e.g., FEV350/TY2, FEV350/TY2/TY1 and PRO variants)

Documentation

Technical documentation and user manuals are available from the manufacturer, including an official datasheet. View datasheet from the manufacturer

Typical Applications

• Performing safety tests on AC charging stations with Type 1 or Type 2 plugs (PE pre-test, RCD/RDC-DD tester).
• Functional and performance testing of charging station control pilot signals (automatic CP simulation and waveform analysis).
• Troubleshooting and verification of fault conditions through PP simulation and CP/PP fault checks.

Specifications

• Input electrical ratings: 1-phase 250 V max, 3-phase 230/400 V max, 50/60 Hz, max 1 A
• Internal power consumption: 3 W max.
• Dimensions (H x W x D): 263 mm x 123 mm x 63 mm (without TY1/TY2 plug)
• Weight: 0.9 kg without TY1/TY2 plug, 1.4 kg with plug
• Battery: 4 x AA/IEC LR6 alkaline or IEC HR6 NiMH
• Operating temperature: -10 °C to 40 °C; storage: -20 °C to 50 °C
• Relative humidity: Operating 10 % to 85 % (0 °C to 40 °C), storage up to 95 %
• Wireless radio: Bluetooth 5.0, frequency range 2400–2483.5 MHz, output <100 mW
• Altitude: up to 3000 m
• Safety: IEC 61010-1, IEC 61010-2-030; CAT II 300 V; Protection class II
• Performance: IEC 61557-1, IEC 61557-6, IEC 61557-7, IEC 61557-10
• Ingress protection: IEC 60529: IP40

Sources

• Fluke official datasheet: View datasheet from the manufacturer
