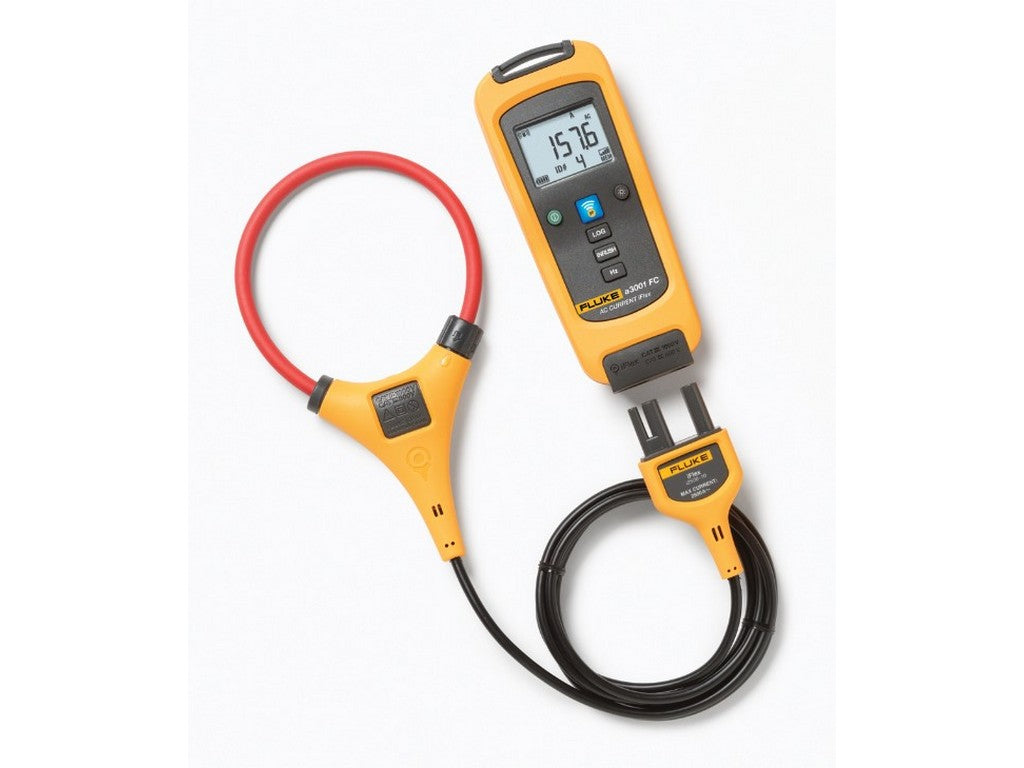

FLUKE a3001 FC Wireless iFlex AC Current Clamp Kit
This is a wireless current measurement set from Fluke, where a Fluke 3000 FC multimeter unit works together with an a3001 FC iFlex current module and the flexible i2500-10 current probe. It is used to measure AC current in places where a regular current clamp might be difficult to access, or where conductors are unusually sized. The flexible probe makes it easier to wrap around cables and busbars without having to change the entire setup.
The iFlex component measures AC currents from 0.5 A to 2500 A, which is useful when working with both smaller installations and very powerful currents. At the same time, measurements can be transmitted wirelessly, allowing them to be read in a different location from where the measurement itself is taking place. This provides a more practical way of working, especially when the measurement point is difficult to access or uncomfortable to stand at for extended periods.
The kit also offers logging, allowing measurements to be saved over time with timestamps. This makes it possible to monitor load, record inrush currents, and document what is happening in the system without constantly being at the instrument. For a service technician or electrician, this is precisely the type of function that makes the equipment relevant for daily troubleshooting and monitoring.
If the task involves AC current, recording measurements, and flexible access around cables, this kit is a good fit. However, if other electrical quantities besides current need to be measured, you should look for a different tool.
View datasheet from the manufacturer
Specifications
- Manufacturer: FLUKE
- MPN: 4465665
- shortDescription: Fluke a3001 FC Wireless iFlex AC Current Clamp Kit (FLK-a3001 FC KIT)
- AC current measurement: 0.5 A to 2500 A
- Resolution: 0.1 A
- Accuracy: 3% ±5 digits (5 Hz to 500 Hz)
- Logging: up to 65,000 timestamped measurements
- Built-in inrush function
- Wireless communication: 2.4 GHz ISM band
- Range in free field: up to 20 m
- Module power supply: 2 x AA batteries (IEC LR6)
- IP rating: IP42
- Warranty: 3 years
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
