Product Overview

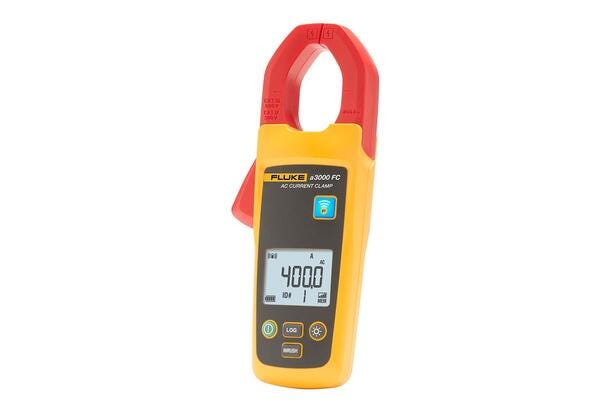

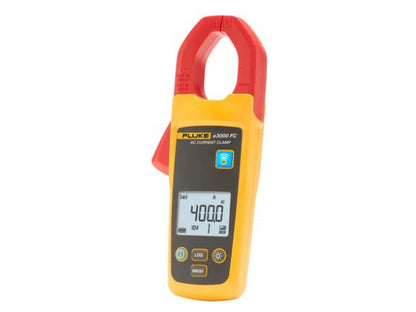

The Fluke a3000 FC Wireless AC Current Clamp Module is a wireless True-RMS AC current clamp module from FLUKE. The product is identified in the input as Fluke a3000 FC (item no. 4401588) and functions as a measurement device for AC current with wireless communication.
Features
- Wireless True-RMS AC Current Clamp Module (Fluke a3000 FC).
- AC Current Measurement Range: 0.5 A to 400 A.
- Resolution: 0.1 A.
- Data Acquisition: module can record and store up to 65,000 readings.
- Inrush function for measuring starting currents.
- Power Supply: two AA cells; typical battery life stated as 400 hours.
- Wireless communication on the 2.4 GHz ISM band with open-air range up to 20 m.
- Safety Rating: CAT III 600 V.
Sources
Information verified from the manufacturer's product page: See manufacturer's product page.
Specifications
- Product Name: Fluke a3000 FC Wireless AC Current Clamp Module (Part# 4401588).
- AC Current Measurement Range: 0.5 A – 400 A.
- Resolution: 0.1 A.
- Data Memory: up to 65,000 readings.
- Inrush Function: Yes (indicated).
- Battery Type: 2 x AA; typical life 400 hours.
- Wireless Frequency: 2.4 GHz ISM band; open-air range up to 20 m.
- Safety Category: CAT III 600 V.
Content generated using AI – we reserve the right for errors.
Contact HIN for further product information.
