Product Overview

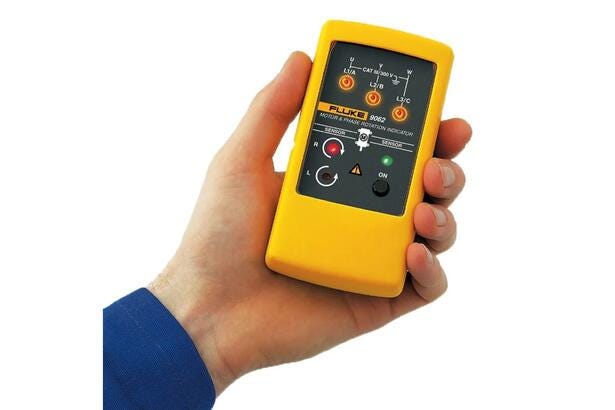

This Fluke 9062 Motor and Phase Rotation Indicator is a phase and motor rotation indicator for quick identification of 3-phase rotation and direction of rotation on motors. The instrument can determine the direction of rotation contact-free on running motors, even where the shaft is not visible. The manufacturer's product page lists a manual and datasheet as additional documentation.Function and Operation
- Contact-free determination of motor rotation direction for synchronous and asynchronous 3-phase motors.
- Indication of 3-phase rotation using the included test leads or by contact-free measurement.
- Phase texts and display functions operate within the voltage and frequency range specified below.
Typical Applications
- Determination of 3-phase rotation.
- Determination of direction of rotation on running motors contact-free when the shaft is not visible.
Included Accessories
- Three test leads.
- Three test probes.
- Three alligator clips.
- 9 V battery and user manual.
The manufacturer's product page includes manuals and a datasheet for further reference (see Fluke product information for details).
Specifications
- Product Name: Fluke 9062 Motor and Phase Rotation Indicator.
- Manufacturer: FLUKE.
- Manufacturer's Part Number: 2435077.
- Voltage Range: Up to 400 V.
- Phase Display: 120–400 V AC.
- Frequency Range: 2–400 Hz.
- Category/Safety: CAT III, 300 V.
- Operating Time: Continuous.
- Operating Temperature: 0 °C to 40 °C.
- Operating Altitude: Up to 2000 m.
- Humidity (non-condensing): 15% to 80%.
- Dust/Water Resistance: IP40.
- Included Accessories: three test leads, three test probes, three alligator clips, 9 V battery, user manual.
