Product Overview

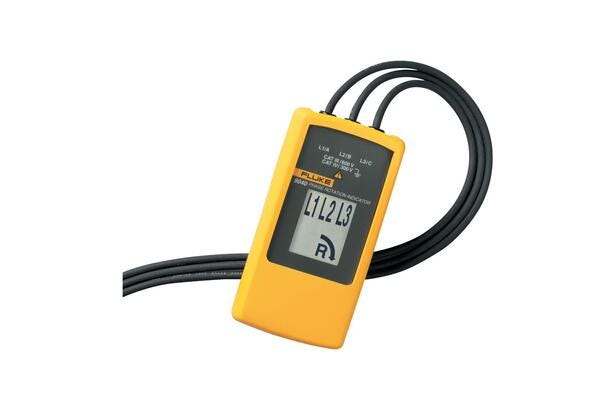

This handheld phase rotation indicator Fluke 9040 from FLUKE displays three-phase presence and rotation direction on an LCD. The Fluke 9040 is designed to determine the phase sequence in three-phase installations and does not require batteries, as the unit is powered from the measured circuit.Key Features
- Display of three-phase presence and rotation direction on LCD.
- Measurement range for phase-to-phase voltage: 40–700 V.
- Measurement range for frequency: 15–400 Hz.
- Power supply: from the circuit under test (no batteries needed).

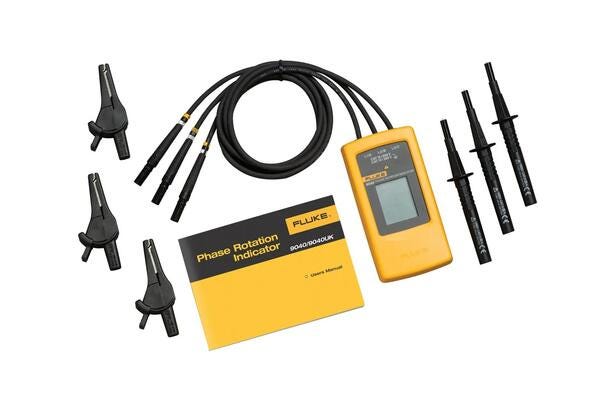

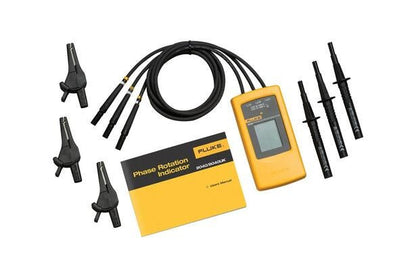

- Included accessories: three self-retaining test probes and an alligator clip.
Typical Applications

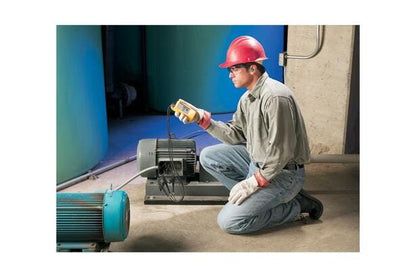

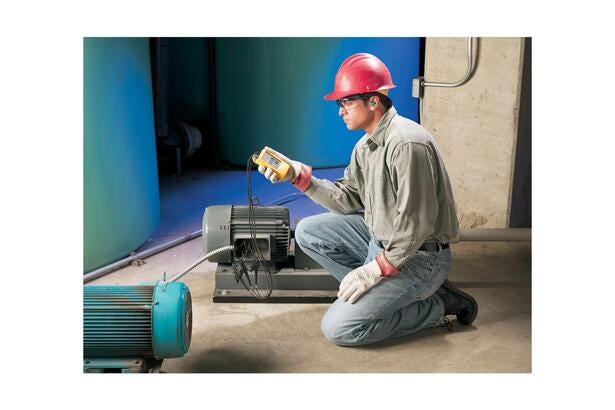

The Fluke 9040 is used to measure phase rotation and determine the phase sequence in situations where three-phase supply powers motors, drives, and electrical systems.Safety and Compliance
- Safety categories: CAT III 600 V and CAT IV 300 V.
- Complies with EN 61010 and EN 61557-7.
Specifications
- Product name: Fluke 9040 Phase Rotation Indicator.
- Manufacturer: FLUKE.
- Manufacturer part number: 4014969.
- Measurement range, phase-to-phase: 40–700 V.
- Frequency range: 15–400 Hz.
- Power supply: Powered from test circuit (no batteries required).
- Included accessories: three self-retaining test probes and an alligator clip.
- Safety categories: CAT III 600 V; CAT IV 300 V.
- Standards: EN 61010; EN 61557-7.
- Physical size: 124 x 61 x 27 mm.
- Weight: 200 g.
- Warranty: 2 years.
- SKU: 2435050.
