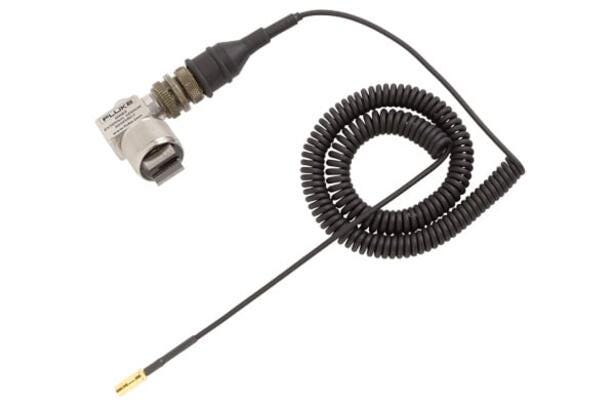

Fluke 805ES External Vibration Sensor
The Fluke 805ES is an accessory for the Fluke 805 and Fluke 805 FC vibration meters. The sensor is used when more flexible vibration measurements are desired than with the meter alone, especially in locations that are difficult to access with the instrument in hand.
The sensor head is low-profile and angled 90 degrees, reducing its footprint against the object. The included U-shaped magnet allows the sensor to be attached to both flat and curved measuring surfaces. This is practical for general machine troubleshooting, where quick, stable positioning and repeated measurements at the same location are required.
The coiled cable provides more flexibility between the sensor and the meter, and the connection is made via the external SMB connection on the instrument. The sensor also has an IP66 enclosure rating, making it better suited for environments where dust and water exposure may occur.
HIN sees this type of sensor as a relevant choice when a standard measurement is not enough, and when an original solution that fits directly with the Fluke 805 series is desired. This is particularly advantageous if you work with routine condition monitoring and want a fixed and simple setup around the measurement point.
You can read more here:
See datasheet from the manufacturer
Specifications
- Accessory for Fluke 805 and Fluke 805 FC vibration meters
- External vibration sensor
- Low-profile sensor housing with 90° design
- U-shaped magnetic mount for flat and curved surfaces
- Coiled cable that can stretch to more than 7 ft
- Connection via SMB external sensor connector
- Ingress Protection rating: IP66
- Measurement range: 7 g pk (68.7 m/s² pk)
- Frequency range: 0 to 6000 cpm (0 to 100 Hz)
