Product Overview

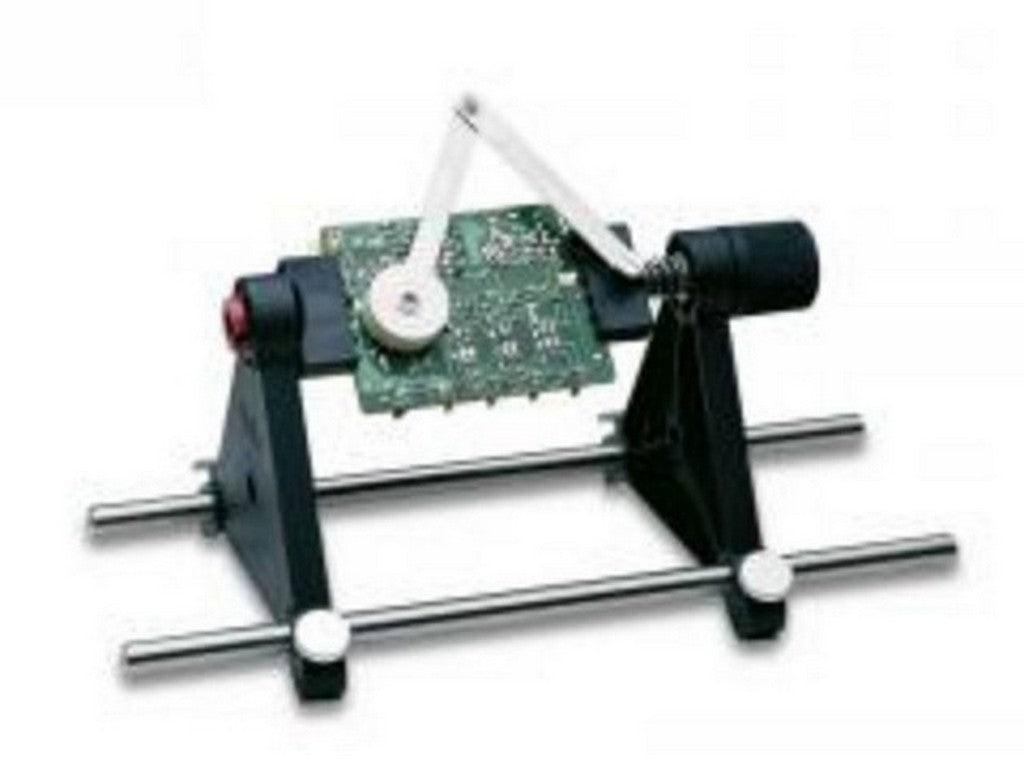

The Weller ESF120 (Item No. T0051502699N) is an antistatic PCB holder. The product is ESD-safe and designed for holding printed circuit boards with a maximum size of 160 x 235 mm. The holder's mechanical features include 360° rotation in 15° increments, as well as mechanisms for secure clamping of PCBs.
Features
- ESD-safe antistatic construction.
- Capacity for PCBs up to 160 x 235 mm.
- 360° rotation in 15° increments for positioning.
- Clamping via spring clamp and padded arm for component fixation.
Typical Applications
The Weller ESF120 is used for holding and positioning PCBs in work processes where PCBs need to be held securely. The holder's spring clamp and padded arm allow for the fixation of PCBs and components, and the stepless rotation option provides access to various angles of the PCB.
Documentation and Sources
Information in this description has been verified on the manufacturer's product page. Source: Weller product page for ESF120.
Specifications
- Product Name: Weller ESF120 (Item No. T0051502699N)
- ESD: ESD-safe (antistatic)
- PCB Size: Up to 160 x 235 mm
- Rotation: 360° in 15° increments
- Clamping: Spring clamp and padded arm for component fixation
