STAUBLI 33.4057

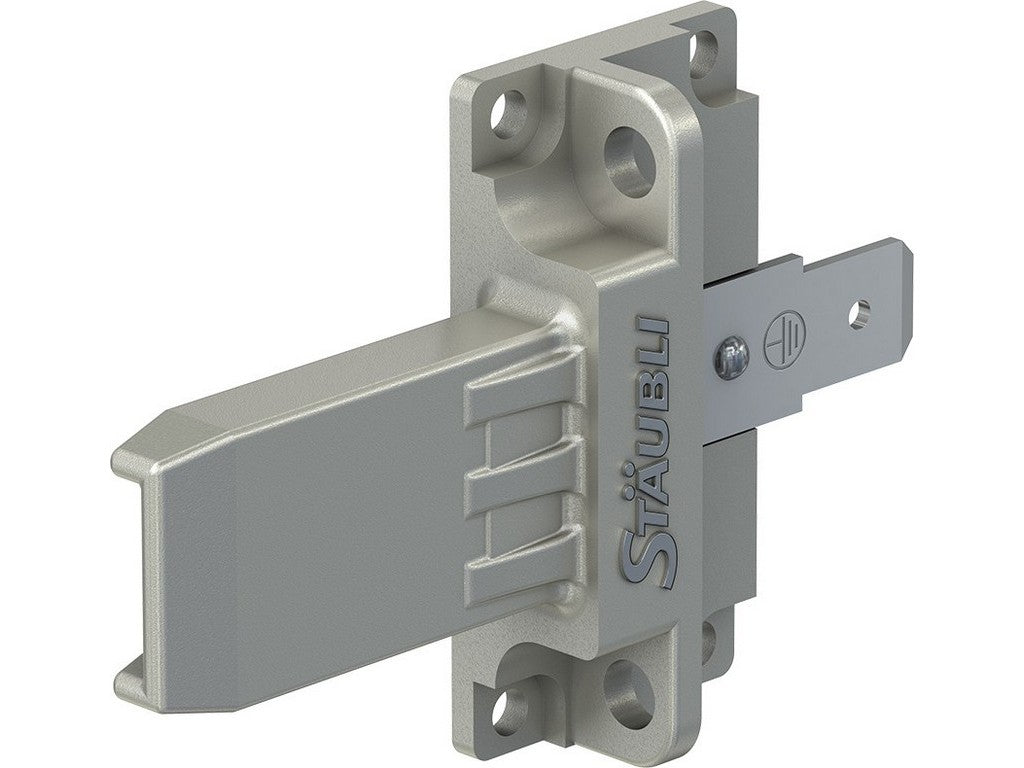

STAUBLI 33.4057 is the standard end piece with pin termination for CombiTac DIN housings. In practice, it is the small termination used at the end of a DIN housing to complete the assembly correctly.
The end piece is used in CombiTac assemblies where there is a need for protective internal grounding in conductive DIN housings with live conductors. It is therefore a component typically chosen when the housing not only needs to be assembled mechanically but also correctly integrated into the electrical setup.
For mounting in DIN housings, LI-SHR-GF-TORX M3x10 screws are used, and the tightening torque must not exceed 1.2 N·m. It is important to adhere to this, as these types of connections in the CombiTac system must be assembled according to the manufacturer's instructions to function correctly.
The component is supplied as 2 pins per frame.
See datasheet from the manufacturer
Typical applications
The end piece is used in CombiTac DIN housings when terminating with a standard end piece and at the same time accounting for protective or internal grounding in conductive housings with active conductors.
Specifications
- Manufacturer: STAUBLI
- MPN: 33.4057
- Product designation: CT-BEG-S
- Type: standard end piece for CombiTac DIN housings, pin termination
- Scope of delivery: 2 pins per frame
- For DIN housings: screws LI-SHR-GF-TORX M3x10, order no. 33.2890
- Max. tightening torque: 1.2 N·m
- Termination type for these housings: flat connector termination 6.3 mm × 0.8 mm
- Datasheet URL: https://www.staubli.com/content/dam/ecs/technical-documentation/assembly-instructions/IND/IS_MA213-en.pdf
