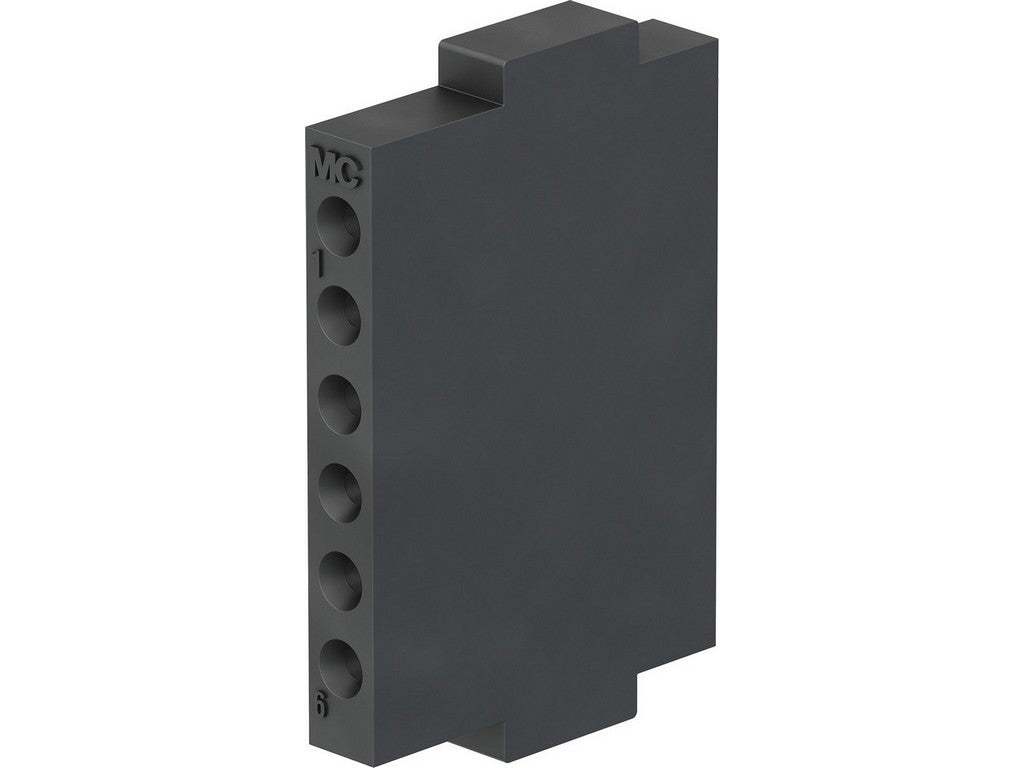

Stäubli CT-E1-6
The Stäubli CT-E1-6 is a 6-pole contact carrier for the CombiTac uniq system. It is used as the part that holds and positions the contacts in a modular connector, allowing for the construction of a solution tailored to the specific task. This is particularly relevant when working with multiple connections in the same unit, while maintaining a compact and clear structure.
The contact carrier is made of EPTR and has a contact diameter of 1 mm. The front of the socket side is IP2X, providing basic protection against access to live parts. The electrical data indicates rated voltages of 300 V and 150 V, while the UL rated voltage is 250 V. It is also rated for environmental categories 2/CAT II and 3/CAT III.
In practice, it is a spare part or built-in component for professional connector assemblies where Stäubli CombiTac is used as a modular system. It is part of the overall contact solution, not a complete unit in itself.
During assembly and production, it is also worth noting the temperature limits provided for the soldering process: max. 260 °C for 3 seconds during flow soldering. This makes it relevant in an industrial production context where components must be handled in a controlled process.
Specifications
- Manufacturer: STAUBLI
- MPN: 33.4014
- Type: 6-pole contact carrier
- System: CombiTac uniq
- Contact diameter: 1 mm
- Contact carrier material: EPTR (E229145)
- Rated voltage: 300 V and 150 V
- UL rated voltage: 250 V
- Pollution degree/overvoltage category: 2/CAT II and 3/CAT III
- Front protection on socket: IP2X
- Max. flow soldering temperature/time: 260 °C/3 s
- Temperature range: +90 °C to -40 °C
See datasheet from the manufacturer
