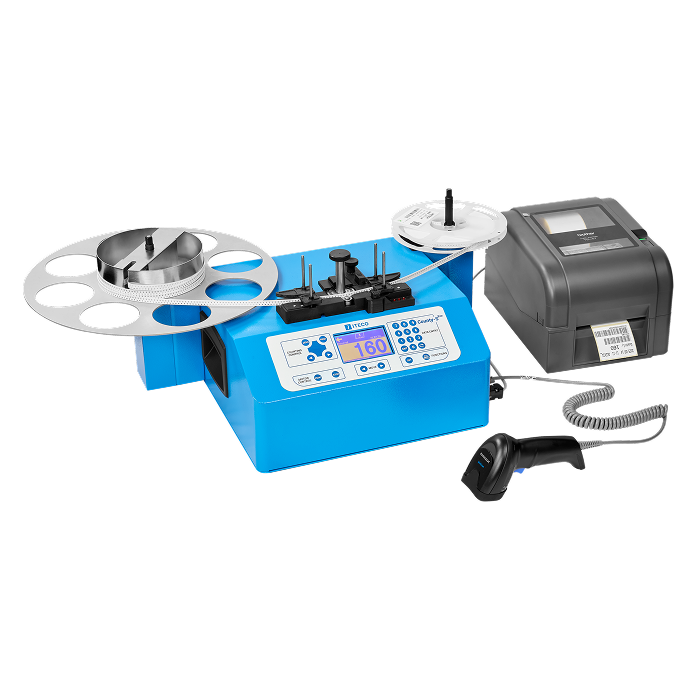

County-S EVO — motorized counting machine
The County-S EVO is a motorized counting machine designed for counting taped SMD components mounted on reels or tape. The machine is intended for automatic feeding and accurate counting with the option for both totalizing and preset stop functions.
Function and operation
The machine offers two primary operating modes, as documented by the manufacturer:
- TOTALIZER: counting from zero with motorized feeding; the counter automatically stops at the tape end to prevent loss of total.
- PRESET MODE: the desired component count is entered, and the County-S EVO automatically stops when the set count is reached.
There is adjustable speed control, the ability for step-by-step counting (one component at a time), and an optional function for Empty Pocket Check.
Interfaces and data management
- Blue LCD display with LED backlight (160 x 104 pixels) and visible area 74 x 46 mm.
- Barcode reader input and serial connection for label printer or PC.
- Internal data logger that stores the last 500 count entries, as well as memory for subtotals.
- Ability to save up to 10 operators with 8 alphanumeric characters each and an internal clock with backup (1 week).
Accessories and options
The datasheet mentions a range of accessories and expansion options for the County-S EVO, including support for larger diameter reels, an aluminum spool (empty reel), a barcode scanner with a coiled cord, and a direct thermal label printer. Some functions, such as Empty Pocket Check, are offered as optional features.
Documentation
See datasheet from the manufacturer
Specifications
- Counting: max. 999999 pcs (6 digits, 22 mm height)
- Max. counting speed: 220 pcs/sec (1 pc per hole)
- Pitch (holes per component): from 1/4 - 1/3 - 1/2 - 1 - 2 - ... - 19
- Max. tape height: 56 mm
- Max. reel diameter: 400 mm (standard), 650 mm with 8301.150 support
- Display: blue LCD with LED backlight 160 x 104 pixels (visible area 74 x 46 mm)
- Adjustable speed control and step-by-step mode
- Empty Pocket Check: Optional
- Barcode reader input and serial output for printer/PC
- Data logger: last 500 count data
- Operator selection: up to 10 operators (8 alphanumeric characters each)
- Internal clock with 1 week backup
- Dimensions: 525 x 340 x 250 (H) mm
- Weight: 9.5 kg
