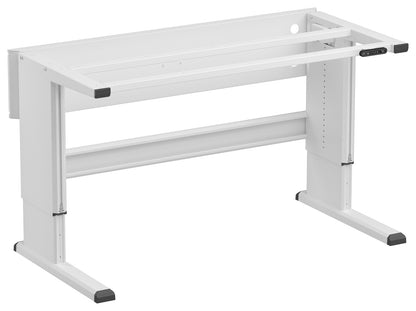

Electrically Adjustable Concept Ergo Workbench Frame
The CE20090EL-49 is an electrically adjustable Concept Ergo workbench frame from TRESTON, designed for ESD environments and stated as suitable for use in cleanrooms. The frame and mechanism are designed for motorized height adjustment and support a range of technical functions and load requirements as specified by the manufacturer.
Technical Overview
- Motorized height adjustment with usable height range 700–1100 mm
- Adjustment speed: 13 mm/second
- Control panel: Up/down, memory positions, and display
- Max load: 400 kg
- ESD-compatible and suitable for cleanrooms
- Frame material: Epoxy powder-coated steel, color RAL7035 (light grey)
- Net weight: 83 kg; package weight: 85 kg
- Warranty: 10 years
Documentation
Further technical details and manufacturer data can be found in the manufacturer's datasheet:
View datasheet from manufacturer
Typical Applications
- R&D (research and development) — described in the manufacturer's material
- ESD environments — stated as ESD-compatible
- Assembly — mentioned in the manufacturer's product description
- Packing — mentioned in the manufacturer's product description
- Logistics — mentioned in the manufacturer's product description
Specifications
- Product code: CE20090EL-49
- Width: 2000 mm
- Depth: 900 mm
- Height adjustment range: 700–1100 mm (measured with 25 mm tabletop; stated as usable range)
- Adjustment: Motor, speed 13 mm/second
- Control panel: Up/down, memory positions, and display
- Maximum load: 400 kg
- ESD: Yes
- Suitable for cleanrooms: Yes
- Frame material: Epoxy powder-coated steel
- RAL code: RAL7035 (light grey)
- Net weight: 83 kg
- Package weight: 85 kg
- EAN code: 6416763096411
- Warranty: 10 years
- Quantity per package: 1
Design your workstation
Treston's 3D Configurator guides you through a simple 4-step process, allowing you to customize a complete workstation that precisely fits your specific needs.
