Product Overview

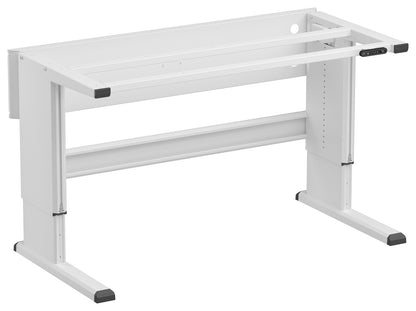

This is an electrically adjustable frame for the Concept Ergo workbench: CE18075EL-49 from TRESTON. The frame is motor-adjustable in height and is supplied as a frame unit for the Concept Ergo series with a documented usable height of 700–1100 mm.
Design and Construction
The CE18075EL-49 frame is made of epoxy powder-coated steel and has a RAL color code RAL7035 (light grey). It is designed to carry a maximum payload of 400 kg and has a net weight of 70 kg (package weight 72 kg). Height adjustment is performed by motor with a documented adjustment speed of 13 mm/second. Adjustment is controlled via a control panel with up/down function, memory positions, and display.
Documentation
See datasheet from the manufacturer
Typical Applications
- Used in R&D (research & development) according to the manufacturer's product description.
- Used in ESD environments, the product is ESD protected.
- Used for assembly, packing, and logistics, as stated in the manufacturer's documentation.
Specifications
- Product code: CE18075EL-49
- Manufacturer: TRESTON
- Width: 1800 mm
- Depth: 750 mm
- Height adjustment range (usable height): 700 - 1100 mm
- Adjustment: Motorized adjustment
- Adjustment speed: 13 mm/second
- Control panel: Up/down, memory positions, and display
- Max load capacity: 400 kg
- ESD: Yes
- Suitable for cleanroom: Yes
- Frame material: Epoxy powder-coated steel
- RAL code/color: RAL7035 / Light grey
- Net weight: 70 kg
- Package weight: 72 kg
- Package quantity: 1
- Warranty: 10 years
- EAN: 6416763096374
- Note: The specified height adjustment range is measured with a 25 mm worktop and is thus the usable height for the entire workbench.
