Product Overview

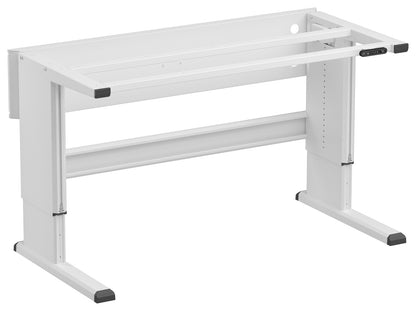

This is an electrically adjustable workbench frame: Concept Ergo CE18060EL-49 from TRESTON. The frame is designed as a motorised workstation with dimensions 1800 x 600 mm (ESD version) and provides an adjustable working height measured with a 25 mm tabletop.
Technical Description
- Product Code: CE18060EL-49
- Dimensions: 1800 mm x 600 mm
- Height adjustment range: 700 - 1100 mm (measured with 25 mm tabletop)
- Adjustment type: Motor
- Height adjustment speed: 13 mm/second
- Operation: Up/down control panel with memory positions and display
- Max load: 400 kg
- Net weight: 68 kg
- ESD-protected: Yes
- Suitable for cleanroom: Yes
- Material: Epoxy powder-coated steel
- Colour: Light grey (RAL7035)
- Availability: Make to order in Central Europe and Finland
- Warranty: 10 years
Typical Applications
The manufacturer's description indicates direct applications: Concept Ergo CE18060EL-49 is used in R&D, ESD environments, assembly, packing, and logistics. These applications are evident from the manufacturer's product text and indicate relevant use scenarios for the electrically adjustable ESD frame.
Documentation
See technical data and manufacturer information in the official product datasheet: See datasheet from manufacturer
Specifications
- Product: Concept Ergo CE18060EL-49, electrically adjustable workbench frame
- Dimensions: 1800 x 600 mm
- Height adjustment: 700 - 1100 mm (measured with 25 mm tabletop)
- Adjustment: Motor, 13 mm/second
- Control panel: Up/down, memory positions and display
- Max load: 400 kg
- Net weight: 68 kg
- ESD: Yes; Suitable for cleanroom
- Material and finish: Epoxy powder-coated steel, RAL7035 (light grey)
- Availability: Make to order in Central Europe and Finland
- Warranty: 10 years
Design your workstation
Source: TRESTON product datasheet (see link above).
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
