Product Overview

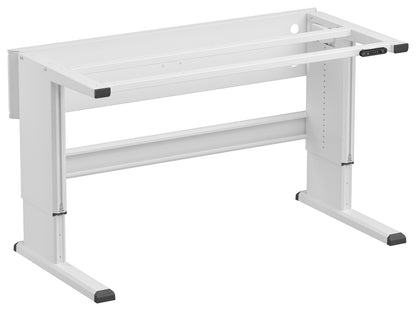

The Concept Ergo electric adjustable bench frame (product code CE15075EL-49) from TRESTON is an electrically adjustable workbench frame measuring 1500 x 750 mm. The frame features motorized height adjustment with a usable height range of 700–1100 mm and an adjustment speed of 13 mm/second. The control panel offers up/down control, memory positions, and a display.
Design and Construction
- Frame: Epoxy powder-coated steel
- Net weight: 66 kg
- Maximum load: 400 kg
- Product code: CE15075EL-49
- ESD-safe and suitable for cleanroom use
Typical Applications
The manufacturer's description specifies concrete application areas for the Concept Ergo electric adjustable bench frame: R&D, ESD environments, assembly, packing, and logistics. These applications are indicated by the manufacturer and reflect the frame program's adaptability and ESD properties.
Documentation
For technical details and complete product information, please refer to the manufacturer's datasheet: View manufacturer's datasheet.
Specifications
- Product name: Concept Ergo electric adjustable bench frame (CE15075EL-49)
- Width: 1500 mm
- Depth: 750 mm
- Height adjustment range (usable): 700–1100 mm
- Adjustment speed: 13 mm/second
- Adjustment method: Motorized adjustment
- Adjustment control: Up/down, memory positions, and display
- Frame material: Epoxy powder-coated steel
- Maximum load: 400 kg
- Net weight: 66 kg
- ESD: Yes
- Suitable for cleanroom: Yes
- Warranty: 10 years
