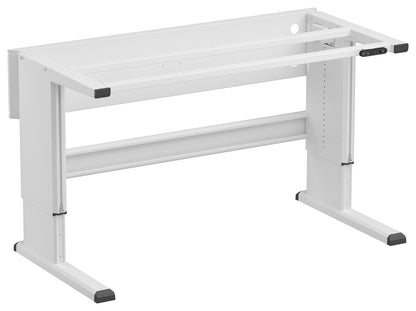

Concept Ergo electric adjustable frame 1200x900

Electrically adjustable workbench frame from TRESTON

This electrically adjustable workbench frame, Treston Concept Ergo CE12090EL-49, is an ESD-rated frame system with nominal dimensions of 1200 × 900 mm. The frame features motorized height adjustment with a usable height of 700–1100 mm and an adjustment speed of 13 mm/second. Height adjustment is controlled from a panel with up/down controls, memory positions, and a display.

Technical description

• Product name: Treston Concept Ergo CE12090EL-49
• Nominal dimensions: 1200 mm (width) × 900 mm (depth)
• Height adjustment (usable): 700–1100 mm
• Adjustment method: Motorized adjustable
• Adjustment speed: 13 mm/second
• Adjustment control: Panel with up/down, memory positions, and display
• Max. load: 400 kg
• Frame material: Epoxy powder-coated steel
• ESD: Yes
• Suitable for cleanroom: Yes
• Colour: Light grey (RAL7035)
• Net weight: 65 kg; Package weight: 67 kg
• Warranty: 10 years

Note: The stated height adjustment range is measured with a 25 mm tabletop and thus indicates the usable height for the entire workbench.

See datasheet from the manufacturer

Typical applications

• Used in R&D (research and development)
• Application in ESD environments
• Used in assembly
• Application in packing
• Application in logistics

Specifications

• Product code: CE12090EL-49
• EAN: 6416763096329
• Width: 1200 mm
• Depth: 900 mm
• Height adjustment: 700 - 1100 mm (measured with 25 mm tabletop)
• Adjustment speed: 13 mm/sec
• Control: Panel with up/down, memory positions, and display
• Max load: 400 kg
• Frame material: Epoxy powder-coated steel
• ESD: Yes
• Suitable for cleanroom: Yes
• Colour code: RAL7035 (Light grey)
• Net/package weight: 65 kg / 67 kg
• Warranty: 10 years
• Source: Treston product datasheet (see link above)
