Electrically adjustable frame – TRESTON CE10090EL-49

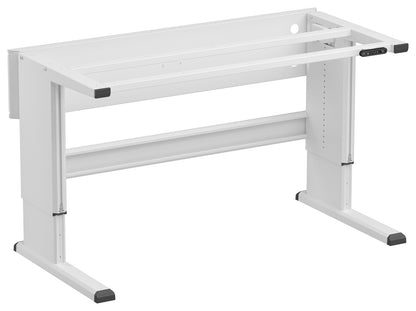

This electrically adjustable frame from TRESTON, CE10090EL-49, is designed for Concept Ergo workbenches with a tabletop size of 1000 x 900 mm. The frame unit provides motorized height adjustment and is constructed from epoxy powder-coated steel (RAL7035, light grey). The product text below is based on the manufacturer's documentation.
Function and control
- Motor-adjusted height range: 700–1100 mm (measured with a 25 mm tabletop, indicates usable height range).
- Adjustment speed: 13 mm/s.
- Electronic control panel with up/down buttons, memory positions, and display.
- Max. load capacity: 400 kg.
Typical applications
The CE10090EL-49 is specified by the manufacturer for use in the following situations, based on the manufacturer's product text:
- Research and Development (R&D).
- ESD environments.
- Assembly.
- Packing.
- Logistics.
Material and environment
- Frame: Epoxy powder-coated steel.
- ESD protected: Yes.
- Suitable for cleanrooms: Yes.
Documentation
For complete manufacturer documentation and details, please refer to Treston's official product sheet.
View datasheet from the manufacturer
Specifications
- Product name: CE10090EL-49
- Manufacturer: TRESTON
- Suitable for tabletop: 1000 x 900 mm
- Height adjustment range: 700 - 1100 mm (measured with 25 mm tabletop)
- Adjustment type: Motorized adjustment
- Adjustment speed: 13 mm/s
- Control panel: Up/down, memory positions, and display
- Max load capacity: 400 kg
- ESD protected: Yes
- Suitable for cleanrooms: Yes
- Frame material: Epoxy powder-coated steel
- RAL: RAL7035 (light grey)
- Net weight: 53 kg
- Package weight: 65 kg
- Package quantity: 1
- Product code/EAN: CE10090EL-49 / 6416763096299
- Warranty: 10 years
Design your workstation
Treston's 3D Configurator takes you through a simple 4-step process, allowing you to tailor a complete workstation that perfectly matches your specific needs.
