Product Description

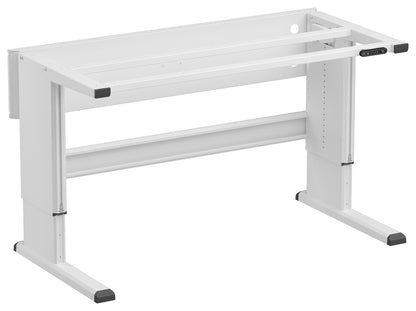

This product from TRESTON is an electrically height-adjustable table frame from the Concept Ergo series, product code CE10075EL-49. The frame has a fixed frame width of 1000 mm and a depth of 750 mm, as well as motor-controlled height adjustment in the range of 700–1100 mm. Height changes occur at a speed of 13 mm/second via a control panel with up/down buttons, memory positions, and a display.
Material and Construction
The frame is made of epoxy powder-coated steel and is specified in the color RAL7035 (light grey). The net weight is 59 kg, and the maximum load is specified at 400 kg. The product comes with a 10-year warranty and is ESD-protected and suitable for use in cleanrooms, as indicated by the manufacturer.
Typical Applications
- Use in R&D (research and development), as stated in the manufacturer's documentation.
- Application in ESD environments, specified by the manufacturer.
- Use in assembly, packing, and logistics tasks, as mentioned in the manufacturer's product text.
Compatibility
The manufacturer states that the Concept Ergo series is compatible with over 500 different accessories, allowing for customization of the workstation according to specific needs.
Documentation
View datasheet from the manufacturer
Specifications
- Product Code: CE10075EL-49
- Manufacturer: TRESTON
- Width: 1000 mm
- Depth: 750 mm
- Height Adjustment: 700–1100 mm
- Adjustment Type: Motorized
- Height Adjustment Speed: 13 mm/second
- Control Panel: Up/down, memory positions, and display
- Max Load: 400 kg
- Net Weight: 59 kg
- Frame Material: Epoxy powder-coated steel
- RAL Color: RAL7035 (light grey)
- ESD: Yes
- Suitable for Cleanroom: Yes
- Warranty: 10 years
- EAN Code: 6416763096282
