Product Overview

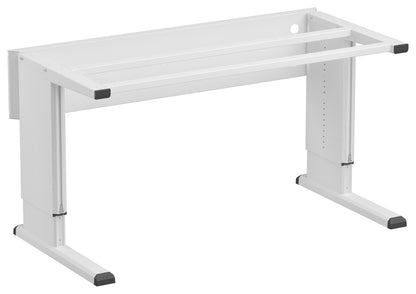

This ESD-classified workbench frame, the Concept Ergo allen key adjustable bench frame (product code CE20090-49) from TRESTON, is an adjustable frame for workbenches with clearly defined mechanical properties. The Concept Ergo CE20090-49 is specified by width and depth, height adjustment, maximum load, and material choice.
Design and Function
- Product name: Concept Ergo allen key adjustable bench frame, product code CE20090-49.
- ESD-classified frame with epoxy powder-coated steel as the frame material.
- Height adjustment with allen key (adjustable) in the range of 700–1100 mm.
- Frame color: Light grey (RAL7035).
- Max load: 500 kg; net weight: 70 kg; warranty: 10 years.
- The frame is designed for modular construction and is compatible with an extensive range of accessories (according to the manufacturer's documentation).
Typical Applications
According to the manufacturer's documentation, the Concept Ergo frame is used for the following purposes:
- R&D: Use as an adjustable workbench frame in development and test environments.
- ESD environments: Frame specified as ESD-classified for work situations where ESD protection is required.
- Assembly: Use as a base for assembly tasks where an adjustable work surface is necessary.
- Packing and logistics: Use as an adjustable workbench for packing or logistical tasks.
Specifications
- Product code: CE20090-49
- ESD: Yes
- Width: 2000 mm
- Depth: 900 mm
- Height adjustment: 700–1100 mm
- Adjustment method: Allen key (allen key adjustable)
- Maximum load: 500 kg
- Frame material: Epoxy powder-coated steel
- Color: Light grey (RAL7035)
- Net weight: 70 kg
- Warranty: 10 years
- Note: Accessory support bar is not included with allen key adjustable frames. The stated height adjustment range is measured with a 25 mm tabletop, thus indicating the usable working height for the entire workbench.
Design your workstation
Treston's 3D Configurator guides you through a simple 4-step process, allowing you to tailor a complete workstation that precisely matches your specific needs.
