ESD-classified table frame
Description

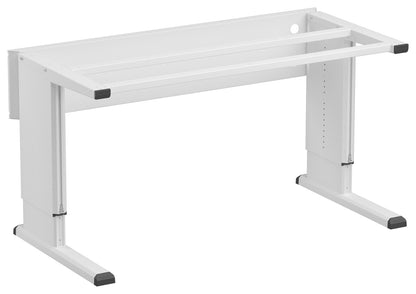

The Concept Ergo frame CE18090-49 is an ESD-classified table frame from TRESTON, designed with adjustable height and robust construction. The Concept Ergo frame CE18090-49 has nominal dimensions of 1800 x 900 mm and is made of epoxy powder-coated steel in the color RAL7035 (light gray). Height adjustment is done with an Allen key (hex key) and is possible within the range of 700–1100 mm.
Technical specifications
- Nominal dimensions: 1800 x 900 mm
- Height adjustment: 700–1100 mm (method: Allen key / hex key)
- Max. static load capacity: 500 kg
- Frame material: epoxy powder-coated steel
- RAL color code: RAL7035 (light gray)
- Net weight: 67 kg
- Packing weight: 69 kg
- Height adjustment speed: 13 mm/s
- ESD: Yes
- Warranty: 10 years
Typical applications
- Used in R&D (research and development) – stated in the manufacturer's product text.
- Used in ESD environments – stated in the manufacturer's product text.
- Used for assembly – stated in the manufacturer's product text.
- Used for packing – stated in the manufacturer's product text.
- Used in logistics – stated in the manufacturer's product text.
Packaging and additional information
- Product code: CE18090-49
- EAN code: 6416763095933
- Packaging dimensions (stated in manufacturer data): width 340 mm, depth 1820 mm, height 240 mm
- Packing weight: 69 kg
- Manufacturer's note: Accessory beam is not included for table frames adjusted with an Allen key.
- Manufacturer's note: The stated height adjustment area is measured with a 25 mm tabletop and is thus the usable height for the entire workbench.
Documentation
Further technical details and manufacturer data can be found in the manufacturer's datasheet:
See datasheet from the manufacturer
Specifications
- Product name: Concept Ergo frame CE18090-49
- Dimensions: 1800 x 900 mm
- Height range: 700–1100 mm (adjustable with Allen key / hex key)
- Max static load: 500 kg
- Frame material: epoxy powder-coated steel
- RAL color: RAL7035 (light gray)
- Net weight: 67 kg
- Packing weight: 69 kg
- ESD: Yes
- Warranty: 10 years
Design your workstation
Treston's 3D Configurator takes you through a simple 4-step process, allowing you to tailor a complete workstation that precisely fits your specific needs.
Source: Manufacturer's product text and datasheet for CE18090-49.
