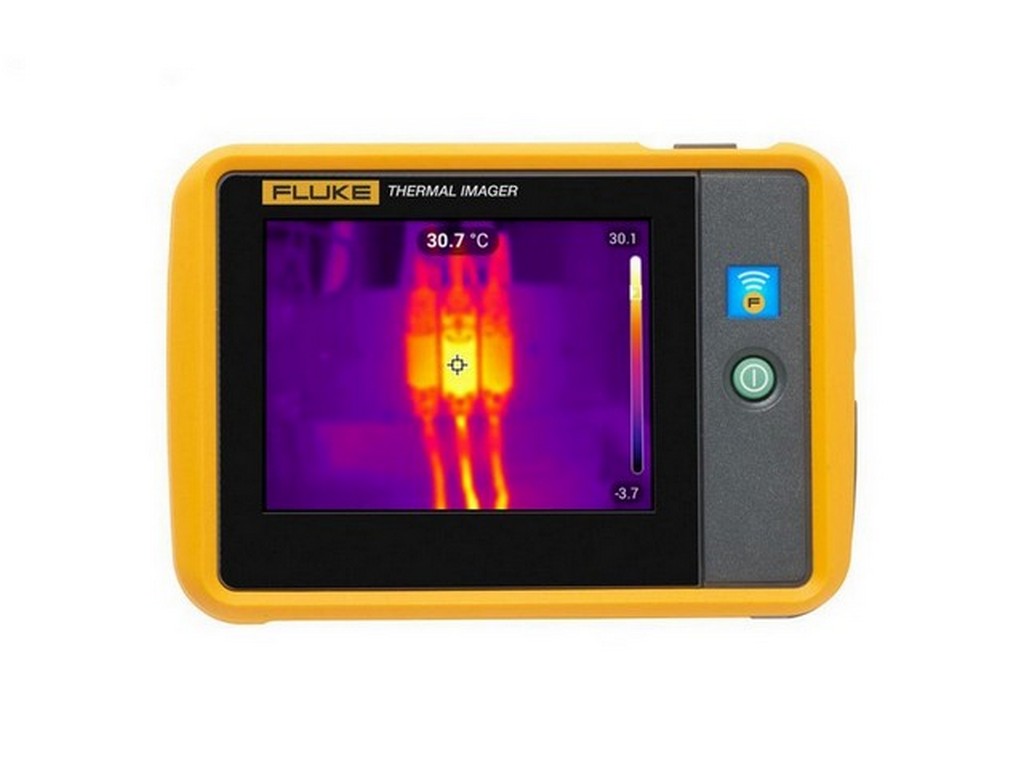

Fluke PTi120 pocket thermal imager
The Fluke PTi120 is a small handheld thermal camera used to detect temperature differences in equipment and installations. In practice, it is a tool for quick troubleshooting, enabling users to find hot spots, overloaded components, or other anomalies that are not always visible to the naked eye.
The camera combines the infrared image with a visible image via IR-Fusion, making it easier to pinpoint the exact location of the problem. This is relevant in electrical panels, on machinery, and during general industrial inspections, where a quick overview is often needed without unnecessary dismantling.
With a 120 × 90 infrared resolution, you get a simple but useful thermal view for daily inspection tasks. The 3.5" touchscreen makes it easy to work directly on the instrument, and the wireless connection allows images to be sent to Fluke Connect for collection and sorting by the correct asset.
It is also an instrument designed to be carried around. It is resistant to dust and water to a limited extent and can withstand a 1-meter drop. At the same time, it has a built-in rechargeable battery, so it can be used in the field without constant access to charging.
If the task involves visual temperature control and quick localization of thermal anomalies, this type of thermal camera is a good fit. However, if more advanced thermography or work with greater image detail is required, it is worth considering whether a different model would be more appropriate.
You can read more here:
See datasheet from the manufacturer
Specifications
- Handheld thermal camera for temperature control and troubleshooting
- 120 × 90 infrared resolution
- 3.5" LCD touchscreen
- IR-Fusion for combining visible and infrared images
- Wireless connection via 802.11 b/g/n (2.4 GHz)
- Fluke Connect asset tagging for image upload and organization
- Temperature measurement range: -20 °C to +400 °C
- Thermal sensitivity (NETD): 60 mK
- Refresh rate: 9 Hz
- IP54 enclosure rating
- Withstands a 1-meter drop
- Internal rechargeable lithium-ion battery
- Operating time: at least 2 hours without WiFi
