STAUBLI 33.0506

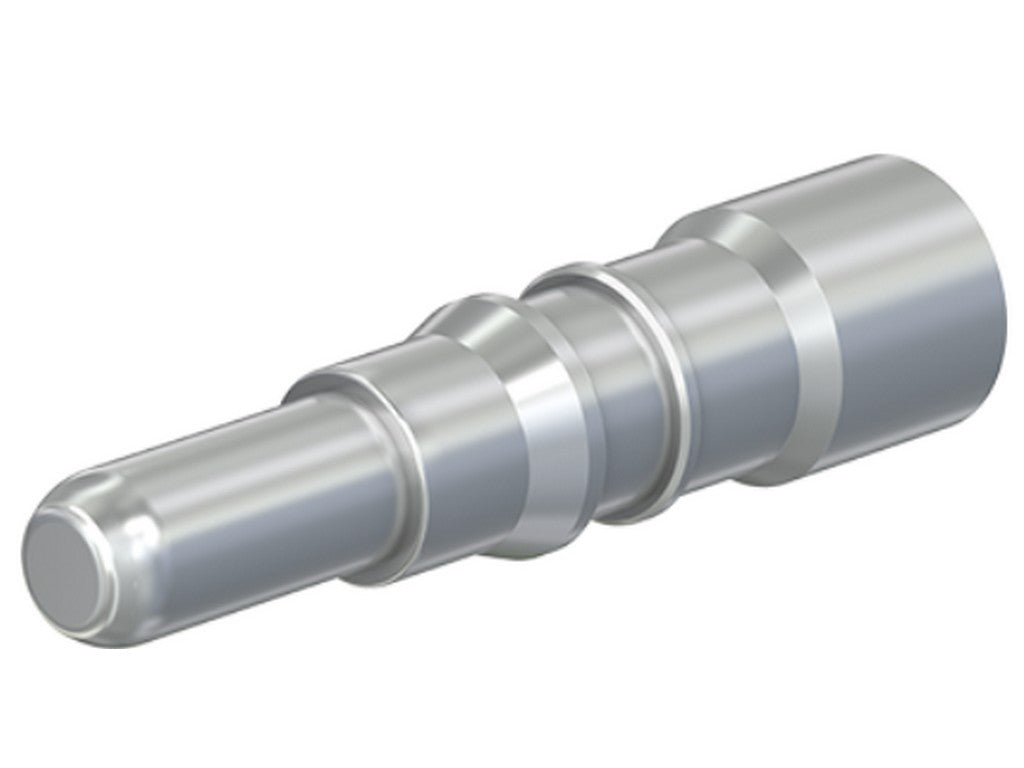

STAUBLI 33.0506 is a contact for the CombiTac uniq series, specifically the CT-SP8/35 AG. It belongs to the modular connectors used when combining multiple connection types in the same system while also requiring a contact that can withstand numerous mating cycles over time.
This is an 8 mm power contact with a conductor cross-section of 35 mm² and a rated current of 142 A. In practice, this means it is designed for power-carrying connections where both current capacity and stable contact are required over many mating and unmating cycles. The catalog also specifies an average mating force of 6.5 N and up to 100,000 mating cycles, which is relevant in systems and equipment where the connection must be usable repeatedly without losing functionality.
The connection type is indicated as C, meaning crimp. This fits well with professional assembly, where prepared conductors are used, and a controlled, mechanically secure termination is desired. The contact's nominal diameter is 8 mm, and it is part of the Stäubli CombiTac uniq catalog.
Typical Applications
CombiTac uniq is used in demanding installations where multiple connections are combined into one solution. This type of contact is particularly used when power needs to be transferred in a modular system, and where durability and repeated mating are important.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 33.0506
- Type: CT-SP8/35 AG
- Series: CombiTac uniq
- Nominal contact diameter: 8 mm
- Conductor cross-section: 35 mm²
- Rated current: 142 A
- Connection type: C
- Average mating force: 6.5 N
- Mating cycles: up to 100,000
