STAUBLI 33.4081

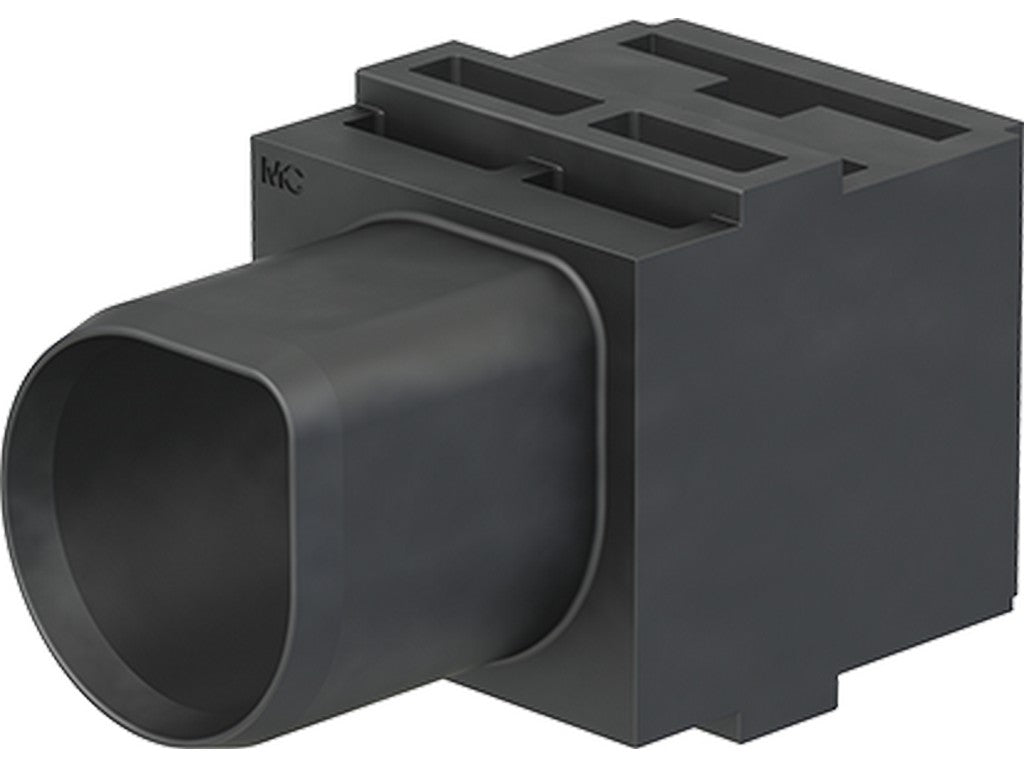

The 33.4081 is a 1-pole plastic contact carrier for the CombiTac system. It is used for the pin-side, i.e., the part that carries the pin contact in a modular connection. Here, it is designed for power contacts with a 12 mm contact diameter.
In practice, it is a component chosen when building a robust and clear high-current connection in CombiTac. The contact carrier holds the contact in place, and the locking itself occurs with the CT-RC12 locking clip. This makes it suitable when working with a solution where the parts must be assembled correctly and remain securely in place during use.
The contact carrier is made of PA, and the temperature range specified according to IEC 61984 is from +125 °C to -40 °C. It is therefore intended as a technical component for demanding electrical interconnections where material selection and mechanical retention are important.
If you work with CombiTac and need a pin carrier for 12 mm power contacts, this is the variant that fits the construction.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 33.4081
- Type: CT-E12-1/S
- 1-pole plastic contact carrier
- Pin carrier
- For the CombiTac system
- For power contacts with 12 mm contact diameter
- Contact locking with CT-RC12
- Material: PA
- Temperature range: +125 °C to -40 °C (IEC 61984)
