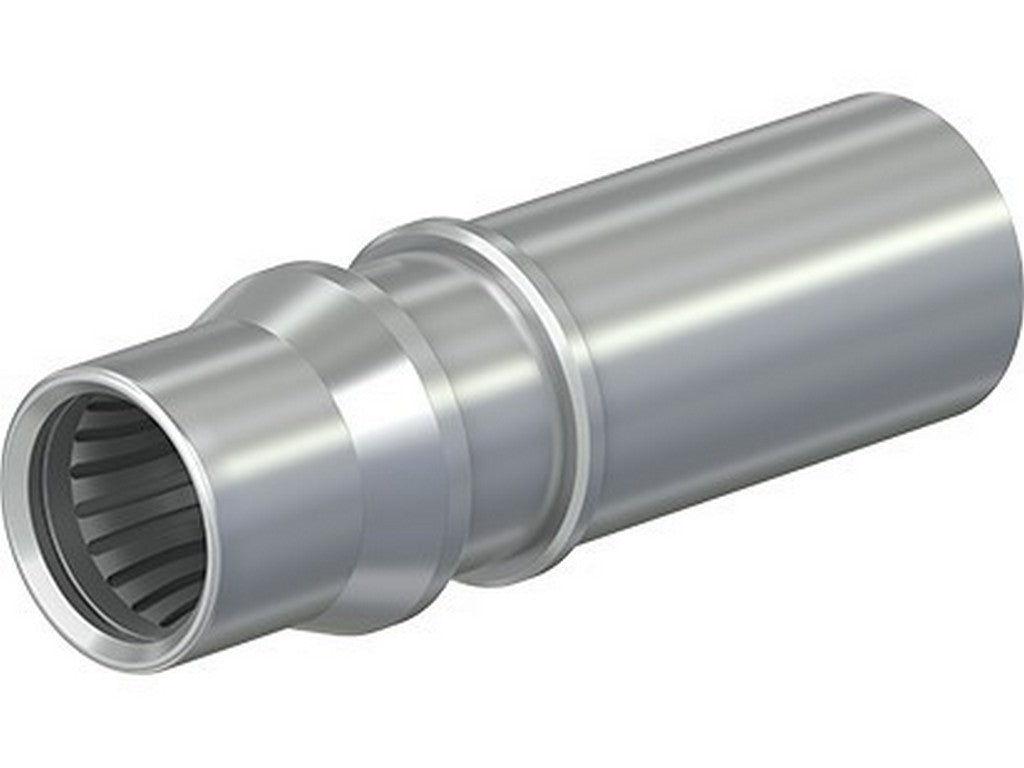

STAUBLI 33.0114
The STAUBLI 33.0114 is a PE socket contact for CombiTac, meaning it is the part in the system used for protective earthing. It belongs to the Stäubli CombiTac modular system, where various contact functions are combined into a single connector solution. Here, the focus is on the green-yellow earth connection.
In practice, it is used when building a professional plug connection with a secure and clear PE connection. It is specified with a conductor cross-section of 25 mm² and a short-circuit current of 1300 A, making it a contact for demanding current paths and robust earthing in a modular system.
CombiTac is known for its modular design, and this contact is part of the system that works with PE. According to Stäubli, the nominal diameter for the socket/pin is 6 mm/8 mm, and the specified lifespan is up to 100,000 mating cycles. This makes sense in installations where there are many repeated connections and disconnections, but a stable connection still needs to be maintained over time.
For a more technical review, the manufacturer's data sheet can be opened here: See manufacturer's data sheet
Typical applications
- CombiTac solutions with protective earthing
- Modular plug connections in industry and electrical engineering
- Building connections where PE needs to be integrated with other contact functions
Specifications
- Manufacturer: STAUBLI
- MPN: 33.0114
- Product: Stäubli CombiTac type CT-BP8/25/PE AG
- Type: PE socket contact for the CombiTac modular system
- Conductor cross-section: 25 mm²
- Short-circuit current: 1300 A
- Nominal diameter socket/pin: 6 mm/8 mm
- Specified lifespan: 100,000 mating cycles
