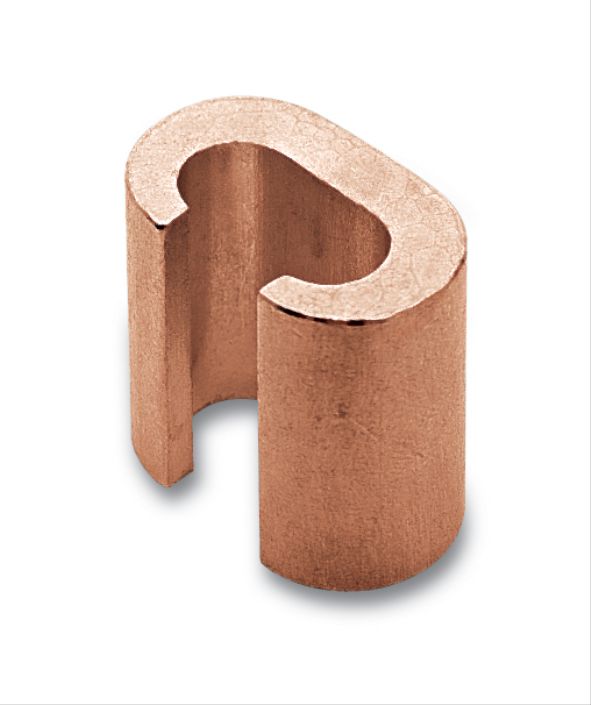

Non-insulated sleeve connector: C95-C95
The C95-C95 is a non-insulated "C"-series sleeve connector from Cembre, designed for branching and connecting copper conductors. The product is made from electrolytic copper with a purity of over 99.95% and is annealed.
Function and application
The connector is specified for tap and joint connections. For the C95-C95, the verified conductor cross-sections are specified as:
- Run conductor: 95–100 mm²
- Tap conductor: 63–100 mm²
Installation and compression follow the manufacturer's instructions: clean any oxidation with a wire brush, place the connector on the run conductor, insert the tap conductor, and perform the specified compressions with the specified die combination in the correct sequence.
Documentation
Technical instructions and tables for die selection and compression sequences can be found in the manufacturer's documentation.
Typical applications
Verified applications for the C95-C95 include tap and joint connections of copper conductors in the specified cross-sections. The description is based on the manufacturer's instructions.
Specifications
- Manufacturer: Cembre
- Manufacturer part number: 2490590
- Type: C-series non-insulated sleeve connector, C95-C95
- Material: Electrolytic copper, purity >99.95%
- Run conductor: 95–100 mm²
- Tap conductor: 63–100 mm²
- Dimensions: C = 29 mm, L = 41 mm, B = 26 mm
- Surface treatment: annealed
- Operating temperature range: −50 °C to 150 °C
- Compliance: RoHS
- Minimum packaging unit: 25 pcs.
