Product Overview

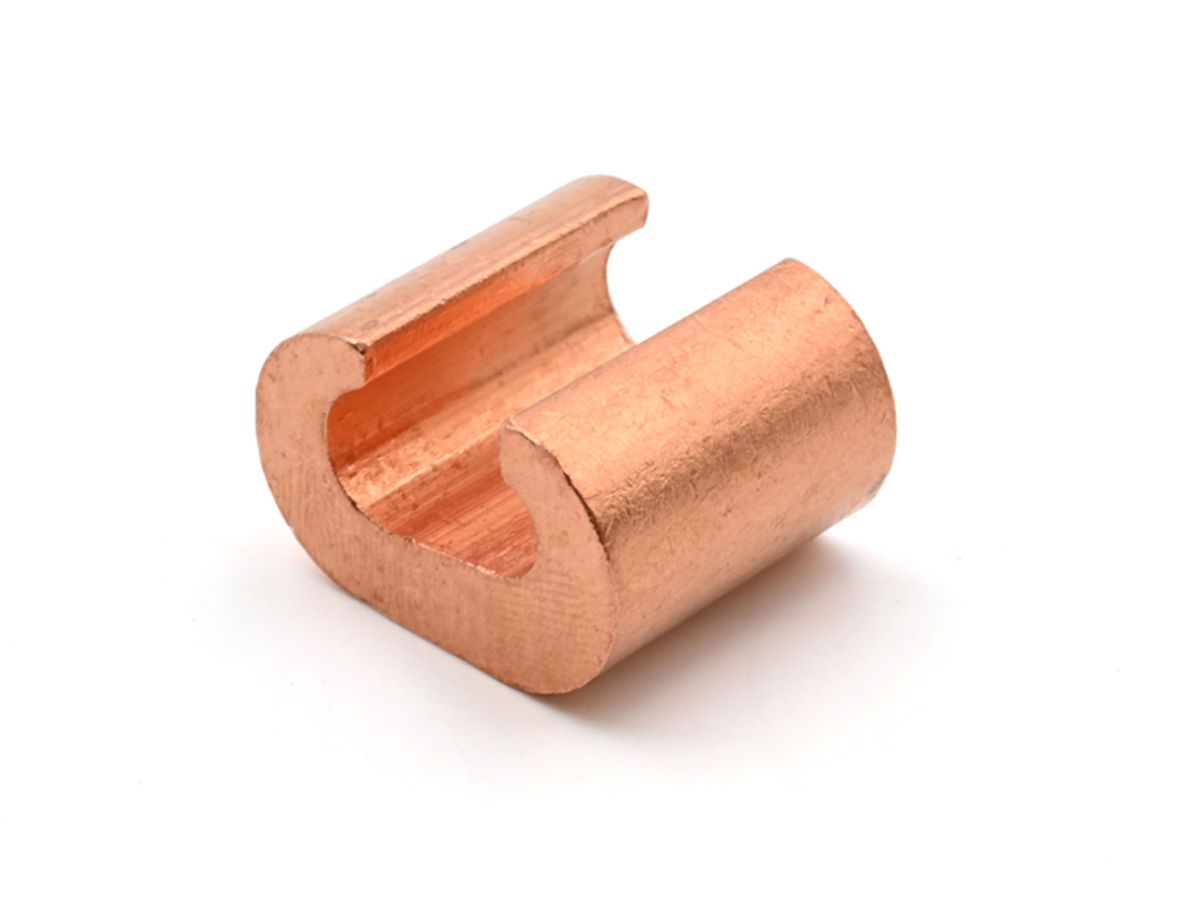

The C35-C16 is a C-series crimp sleeve from CEMBRE designed as a sleeve connector for tap and joint connections. The product is intended for connecting running and tap conductors and can be used for both copper and copper-steel conductors as specified in the manufacturer's documentation. The C35-C16 is identified by its type name and the manufacturer's imprint on the back of the sleeve.Function and Application
The C35-C16 serves as a mechanical and electrical connection between a through conductor and a branch conductor or between two through conductors. The sleeve has an oval geometry for crimping and is made of electrolytic copper with a purity of over 99.95%; the material is annealed. The crimping operation is performed with the matrix/die reference indicated in the manufacturer's tables, in the order shown in the documentation.Installation
- If necessary, clean any oxidized conductor surface with a metal brush along the part involved in the connection.
- Place the C35-C16 on the through conductor.
- Insert the branch conductor into the sleeve.
- Perform crimps using the die model and sequence specified by the manufacturer.
Specifications
- Product Name: C35-C16
- Manufacturer: CEMBRE
- Manufacturer's Part Number: 2490230
- Primary Function: Crimp sleeve for tap and joint connections of conductors (sleeve connector)
- Material: Electrolytic copper, purity > 99.95% (annealed)
- Crimp Geometry: Oval
- Specified Operating Temperature Range: -50 °C to 150 °C
- Supported Through Conductor Sections: 35–40 mm² (and 25 mm²) — according to manufacturer's table
- Supported Branch Conductor Sections: 1.5–16 mm² (and 25 mm²) — according to manufacturer's table
