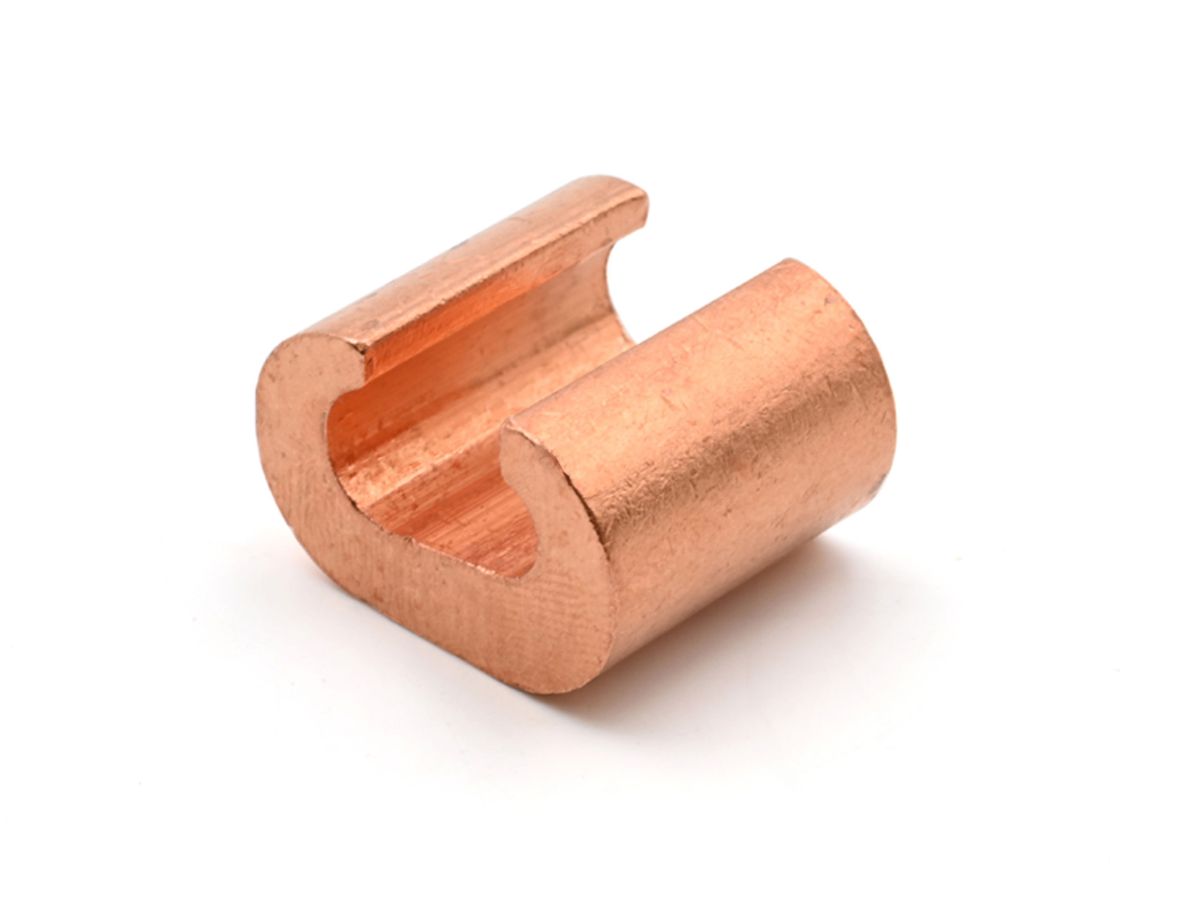

C25-C25 — C-type sleeve connector
The C25-C25 is a Cembre C-type crimp/sleeve connector, designed for tap and splice connections of copper conductors. The product is specified with a 25 mm² run conductor and a 16–25 mm² tap conductor. The C25-C25 is made of electrolytic copper with a stated purity of over 99.95% and is annealed.
Typical Applications
The C25-C25 is used for electrical tap and splice connections where a continuous 25 mm² copper conductor needs to be branched off into a 16–25 mm² conductor. The product's C-type sleeve design ensures mechanical and electrical contact when properly crimped according to the manufacturer's instructions.
Installation and Documentation
Installation follows Cembre's installation and crimping instructions. Before assembly, the conductor surface should be cleaned of oxidation. For correct selection of dies and crimping sequence, refer to the manufacturer's guide in the datasheet.
Specifications
- Product Name: C25-C25
- Manufacturer: CEMBRE
- Manufacturer Part Number: 2490190
- Type: C-type sleeve connector
- Run Conductor: 25 mm²
- Tap Conductor: 16–25 mm²
- Material: Electrolytic copper, purity > 99.95%, annealed
- Dimensions: C = 17 mm, L = 21.4 mm, B = 13 mm
- Packaging Quantity: Standard 300 pcs (minimum pack 50 pcs)
