STAUBLI 06.0010

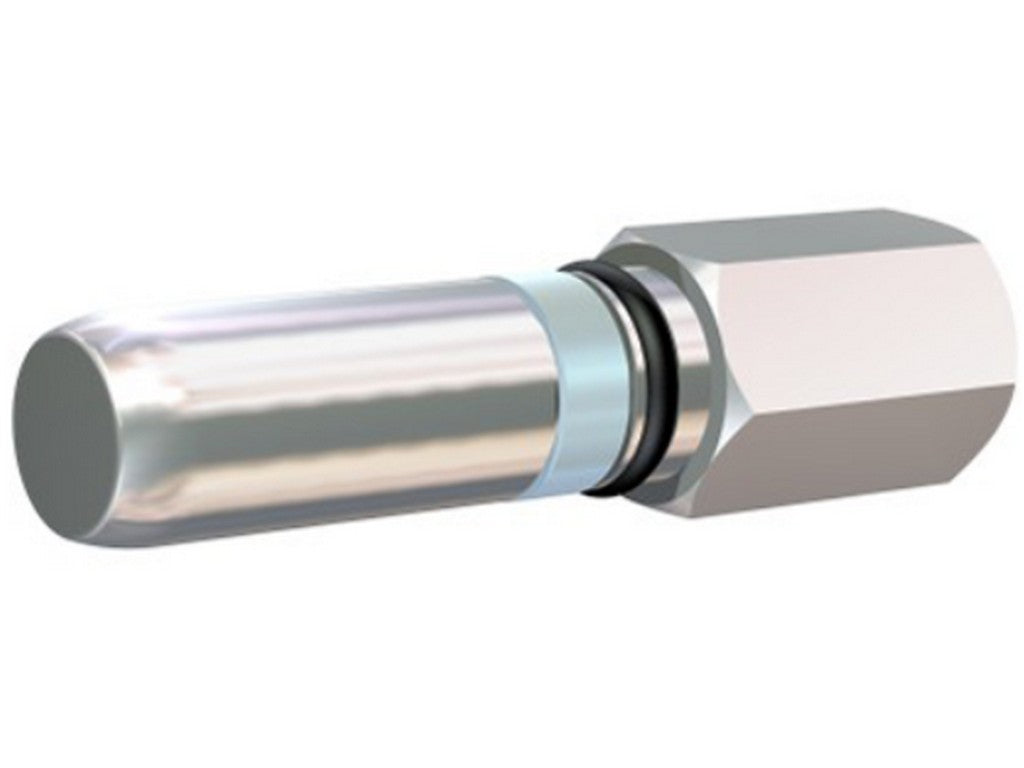

The Stäubli 06.0010 is a single-phase, uninsulated round plug with a snap-lock and internal thread. It belongs to the Stäubli SIG14AR-N/12 series and is used for creating a robust, pluggable connection for power supply or distribution.
This is a plug type for professional installations where a secure and robust connection is required, but without the connection being permanent. The snap-lock helps to hold the plug firmly, and the threaded connection provides controlled assembly. With a rated current of 230 A at 80 °C, it is designed for high currents in demanding environments.
As an uninsulated plug, it must be part of a setup where the assembly and the surrounding installation have been thoroughly considered. It is typically part of a larger solution involving fixed power connections, where space, assembly, and re-tightening interact.
In terms of size, it has a nominal diameter A of 14 mm, an outer diameter B of 43 mm, and a total length of 69 mm. It uses an M12 thread, the wrench size is 17 mm, and the recommended tightening torque is 16 Nm. The weight is 0.099 kg.
Typical Applications
- Power supply and power distribution
- Industrial installations with high currents
- Professional connections where a pluggable connection is desired
Specifications
- Manufacturer: STAUBLI
- MPN: 06.0010
- Type: SIG14AR-N/12
- Uninsulated, single-phase round plug
- Snap-lock
- Internal thread
- Thread: M12
- Nominal diameter A: 14 mm
- Outer diameter B: 43 mm
- Total length C: 69 mm
- Wrench size SW: 17 mm
- Recommended tightening torque: 16 Nm
- Weight: 0.099 kg
- Rated current at 80 °C: 230 A
