STAUBLI 06.0009

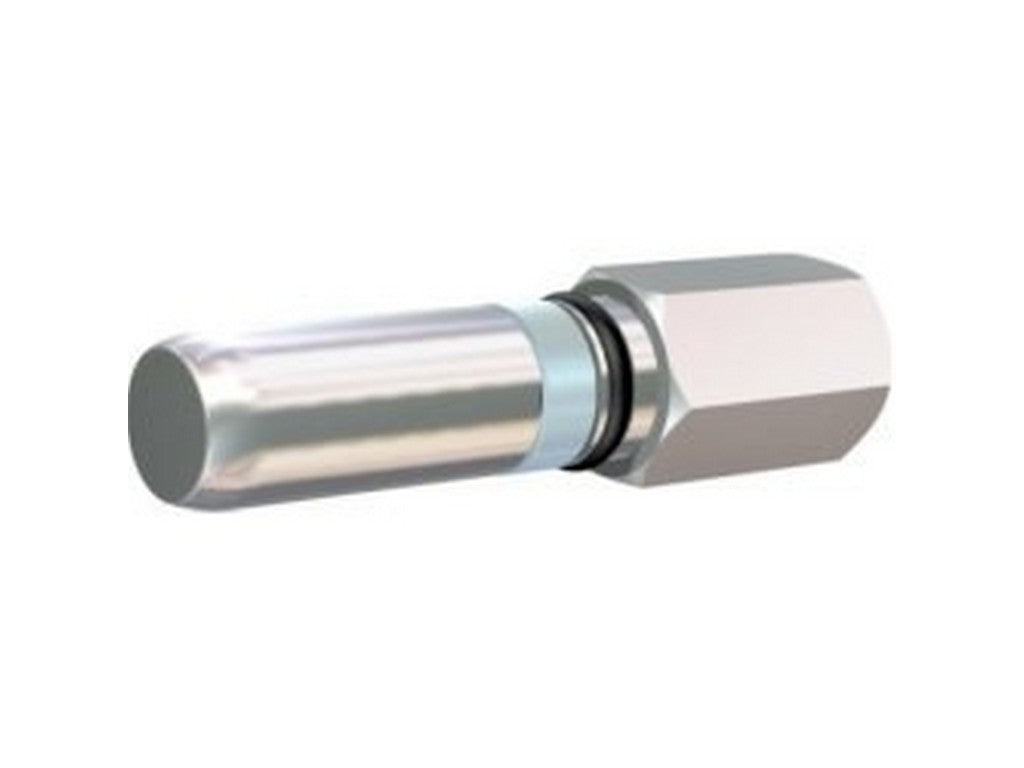

STAUBLI 06.0009 is a single-pole, uninsulated plug with internal thread and M10 connection. It belongs to Stäubli's series of round industrial connectors for high current, where a simple and robust pluggable connection is needed in power transmission and distribution.
This type of connection is used when you want to quickly assemble and disassemble a power cable without compromising the electrical contact. It is particularly relevant here that the plug is designed for high currents and has a rated current of 180 A at 80 °C. In practice, this means it is intended for demanding installations where the current is high and the connection must be stable over time.
Stäubli also specifies the dimensions of the component so that it can be correctly integrated into a mechanical setup. The weight is 0.102 kg. In the catalog, it is included in the section on uninsulated, single-pole round plug connections, which are used in industrial environments where a compact and well-defined current connection is necessary.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 06.0009
- Type: SIG14AR-N/10 plug
- 1-pole, uninsulated plug
- Internal thread: M10
- Rated current at 80 °C: 180 A
- Weight: 0.102 kg
- Dimensions: ØA 14 mm, ØB 43 mm, C 69 mm, D 26 mm, ØE 8 mm, ØK 17 mm, L 10 mm
The content is AI generated - we reserve the right for errors.
Contact HIN for further information about the product.
