STAUBLI 15.0164

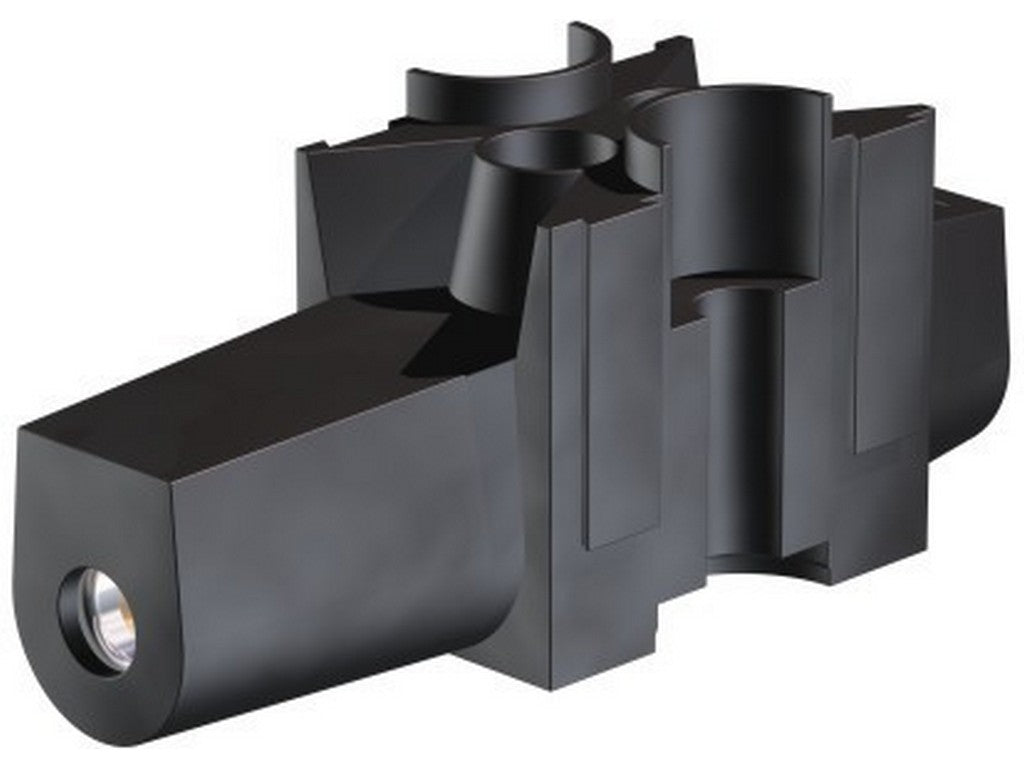

The Stäubli 15.0164 is a socket module for the P1/63 series in Stäubli's Plug-in Systems program. It comes pre-assembled and is the fixed part of a plug connection, where it works together with the corresponding plug part. In practice, it is used when a robust, disconnectable connection is desired in systems where power needs to be connected and disconnected without building a solution around a conventional screw connection.
The P1/63 series features screw termination, so the conductor is clamped directly into the module. This makes it easy to integrate into professional equipment where compact and controlled assembly is desired. The series is rated for conductor cross-sections of 10 mm² / 8 AWG and a rated current of 63 A. For the 600 V variant, spacer D-P4/50PC must be ordered separately.
An official assembly guide, MA081, covers the construction for rated voltages of 500 V and 600 V. This is the type of information typically needed when the connection is to be part of a larger installation with requirements for space, assembly, and correct composition.
See datasheet from the manufacturer: See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0164
- Type: P1/63-BS socket module
- Supplied assembled
- Belongs to Stäubli Plug-in Systems
- Series: P1/63
- Screw termination
- Conductor cross-section: 10 mm² / 8 AWG
- Rated current: 63 A
- Rated voltage: 500 V / 600 V
- Assembly guide: MA081
- 600 V variant requires separate order of spacer D-P4/50PC
