STAUBLI 15.0152

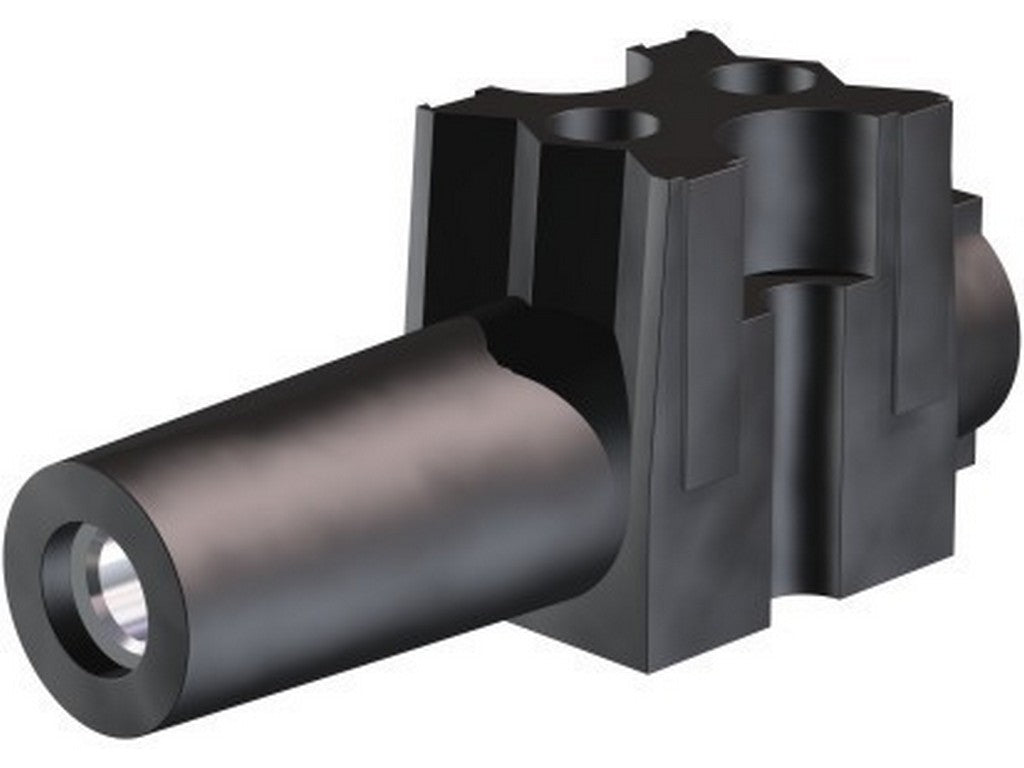

STAUBLI 15.0152 is a socket module for the P1/100 series of round connectors. It is used as the fixed counterpart in a plug connection where the wire is terminated with a screw connection. In practice, it is the part that is mounted in a system or unit when a robust, disconnectable power connection is required.
The module is designed for conductor cross-sections of 16 mm², 25 mm²/6 AWG, and 4 AWG, and is rated for 100 A, or 130 A with derating, at 600 V. This makes it relevant in installations where high current needs to be transferred in a controlled and safe manner.
In this type of environment, contact quality is important. Here, the contact resistance is specified as 150 µΩ, and the contact material is brass with silver plating. Furthermore, the short-circuit current rating is 2.2 kA/1 s, and the insulation material is PC with UL94-V0 classification. This helps explain why the module is suitable for professional power-carrying connections where both electrical and mechanical requirements play a role.
The temperature range is from -40 °C to +125 °C, allowing it to be used in solutions that must function across a wide range of operating conditions.
See datasheet from the manufacturer
Typical applications
Plug modules like this are used when a disconnectable connection for power and energy transfer is desired in the P1/100 system. This is especially relevant in constructions where it is necessary to be able to mount, service, or replace parts without working directly on a fixed, permanent conductor connection.
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0152
- Product: socket module P1/100-BS for the P1/100 round connector family
- Connection: screw connection
- Conductor cross-section: 16 mm², 25 mm²/6 AWG, 4 AWG
- Rated current: 100 A
- Rated current with derating: 130 A
- Rated voltage: 600 V
- Contact resistance: 150 µΩ
- Contact material: brass, silver-plated
- Short-circuit current rating: 2.2 kA/1 s
- Test voltage: 3.51 kV (50 Hz, 1 min.)
- Insulation material: PC
- Flammability class: UL94-V0
- Temperature range: -40 °C to +125 °C
