STAUBLI 15.0674C1-27

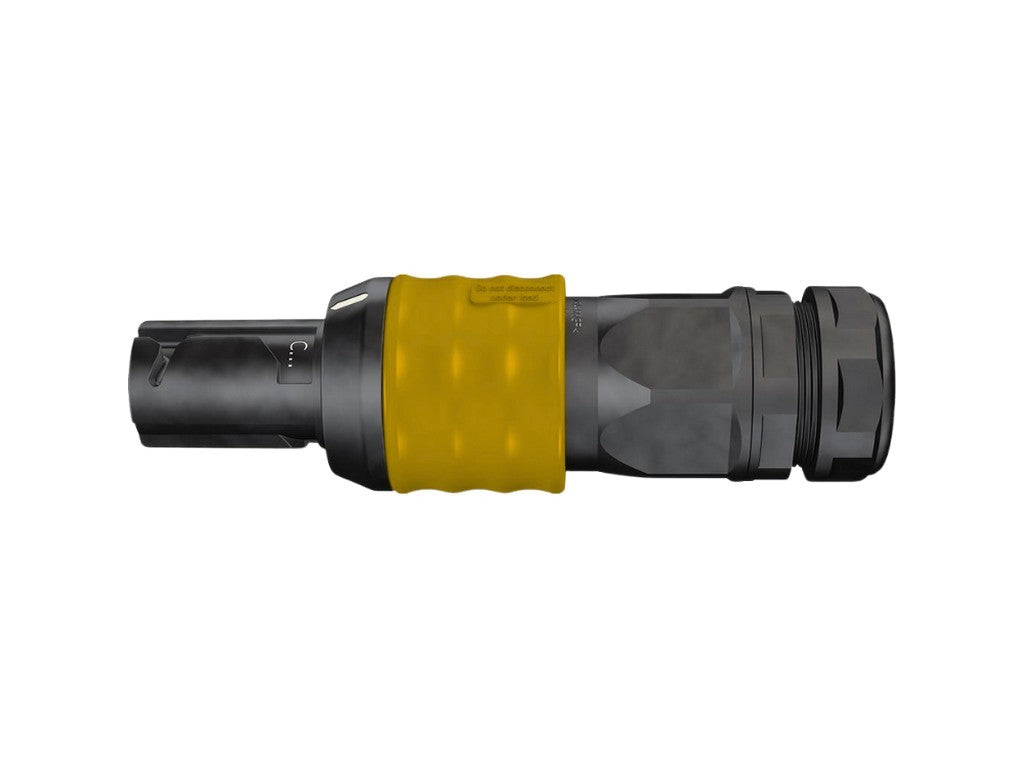

This is a single-pole, insulated socket from Stäubli in the 21BV series. It is used with corresponding plugs from the same family to create a secure and robust power connection in professional installations. The solution is designed for crimping to class 5 and 6 copper cables, making it suitable for applications where flexible conductors are used and a solid, mechanically stable termination is desired.
For this type, the relevant dimensions and limits are set for large current-carrying connections. Stäubli specifies conductor cross-sections up to 300 mm², cable entry in the range Ø 31–41 mm, a maximum conductor diameter of 26 mm, and a crimp sleeve with an outer diameter of 32 mm. This is therefore part of a system for heavy-duty connections where both contact and cable strain relief must be in order.
The order designation 15.0674C1-27 follows Stäubli's coding principle. Here, C1 indicates the mechanical coding, while color code 27 means brown. The coding is used to ensure that only the correct parts can be connected.
Typical applications
This type of connection is typically seen in professional environments where a single-pole power connection with high load capacity and clear mechanical coding is required. This can be in industrial and other electrical engineering installations where heavy-duty cables are used and a solution that is easy to assemble correctly is desired.
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0674C1-27
- Stäubli order designation: 15.0674C
- Series: 21BV
- Type: single-pole, insulated socket
- For crimp connection
- For copper cable (CU), class 5 and 6
- Conductor cross-section: up to 300 mm² (600 MCM)
- Cable entry: Ø 31–41 mm
- Max. conductor diameter (Ø E): 26 mm
- Crimp sleeve outer diameter (Ø F): 32 mm
- Mechanical code: C1
- Color code: 27
- Color: brown
