STAUBLI 15.0644C2-21

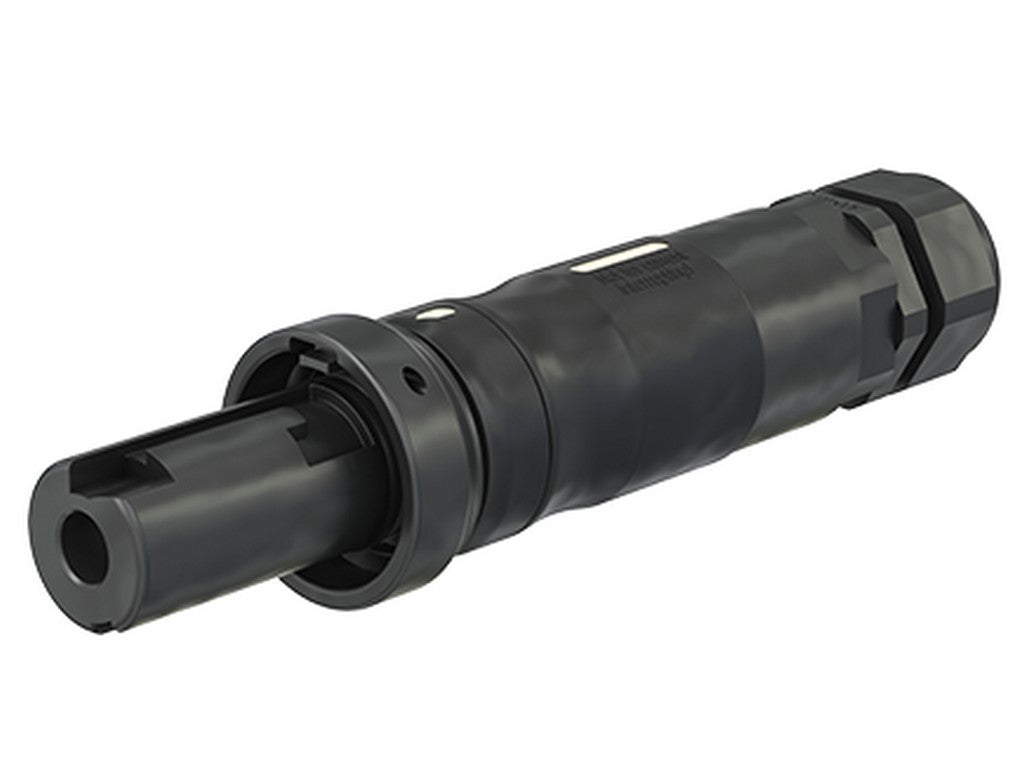

The STAUBLI 15.0644C2-21 is a round, single-phase, insulated cable connector for cable mounting. It belongs to the 10BV series and is the type used when a robust high-current connection is required in a professional installation.
The crucial aspect here is that the connector is designed to handle very high electrical loads. In Stäubli's technical catalog, the 10BV series is rated for 250 A and 1000 V AC / 1500 V DC. This makes it relevant where a standard connector is insufficient, and where safe handling and a clear, mechanical locking mechanism are also desired.
The connection is made with AxiClamp, and this variant is designed for conductor cross-sections of 6, 10, and 16 mm². The cable gland is specified for Ø 9–18 mm, so it fits within a defined range of cables. Color code 21 is black, which is part of Stäubli's color coding system.
The connector series is developed with a bayonet lock, allowing for quick and controlled assembly and disassembly. It is also an insulated solution with IP2X touch protection in an unmated state, which is important when working with live parts where safety is paramount.
See datasheet from the manufacturer
Typical applications
This type of connector is especially used in industrial environments, in temporary power supply, and in installations where a strong and secure single-phase high-current connection is needed.
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0644C2-21
- Series: 10BV
- Type: KBT10BV-AX/M25/6-16-C2
- Mounting: cable mounting
- Design: round, single-phase, insulated connector
- Termination: AxiClamp
- Rated current: 250 A
- Rated voltage: 1000 V AC / 1500 V DC
- Conductor cross-section: 6, 10, and 16 mm²
- Cable gland: Ø 9–18 mm
- Color code 21: black
- Bayonet lock
- Touch protection: IP2X in unmated state
