STAUBLI 15.0645C2-22

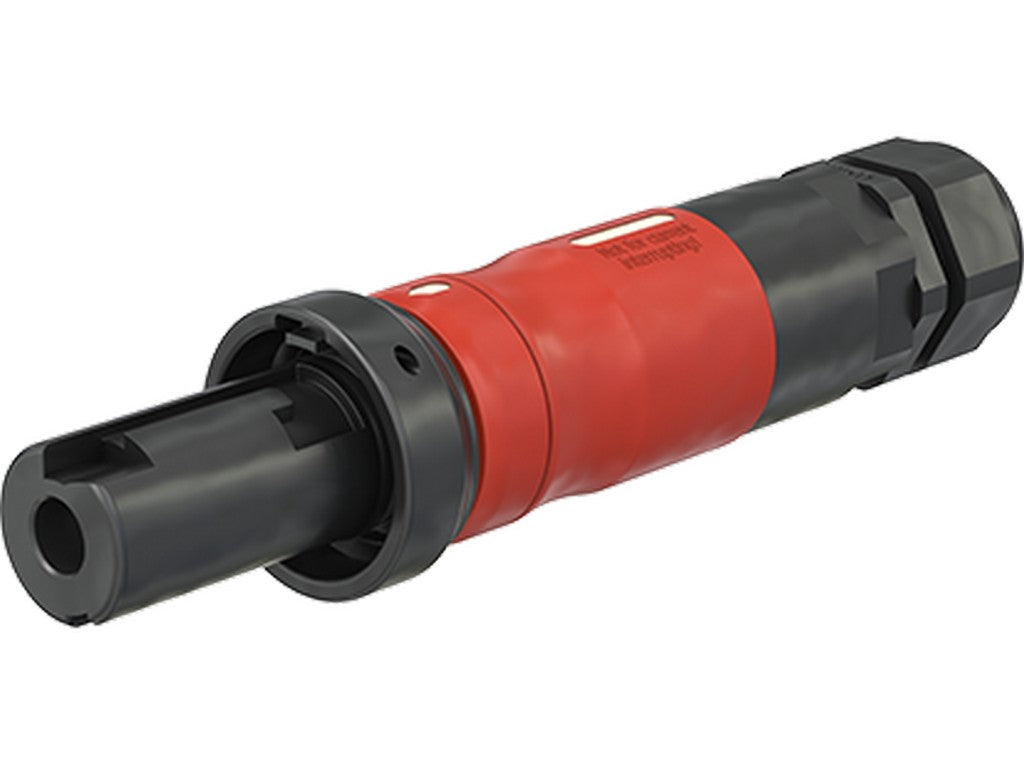

This is a single-pole circular connector from Stäubli’s 10BV series. It is used to create a secure and robust connection for power in low-voltage systems where high load capacity and easy handling are required. This variant features AxiClamp cable termination and is designed for conductors of 25 mm² and 35 mm².
It is precisely the type of component chosen when the connection needs to withstand repeated use and be easy to connect and disconnect. The bayonet lock, for which the series is known, provides clear and mechanical locking, ensuring a secure connection in daily operation. The color code is part of the order; here, code 22 means red.
Stäubli also states that the 10BV series is suitable for AC 1000 V / DC 1500 V. This makes it relevant for installations where high voltages are used within the series' specified range. The cable entry is specified as 9–18 mm, and the contact's nominal diameter is 10 mm.
See datasheet from the manufacturer
Typical applications
- temporary power supply
- industrial installations
- test fields
- generator supply
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0645C2-22
- Type: KBT10BV-AX/M25/25-35-C2
- Series: 10BV
- Single-pole, circular, and insulated connector
- Cable termination: AxiClamp
- Conductor cross-section: 25 mm² and 35 mm²
- AWG: 4 and 2
- Voltage rating: AC 1000 V / DC 1500 V
- Cable entry: 9–18 mm
- Nominal pin/socket diameter: 10 mm
- Color code 22: red
