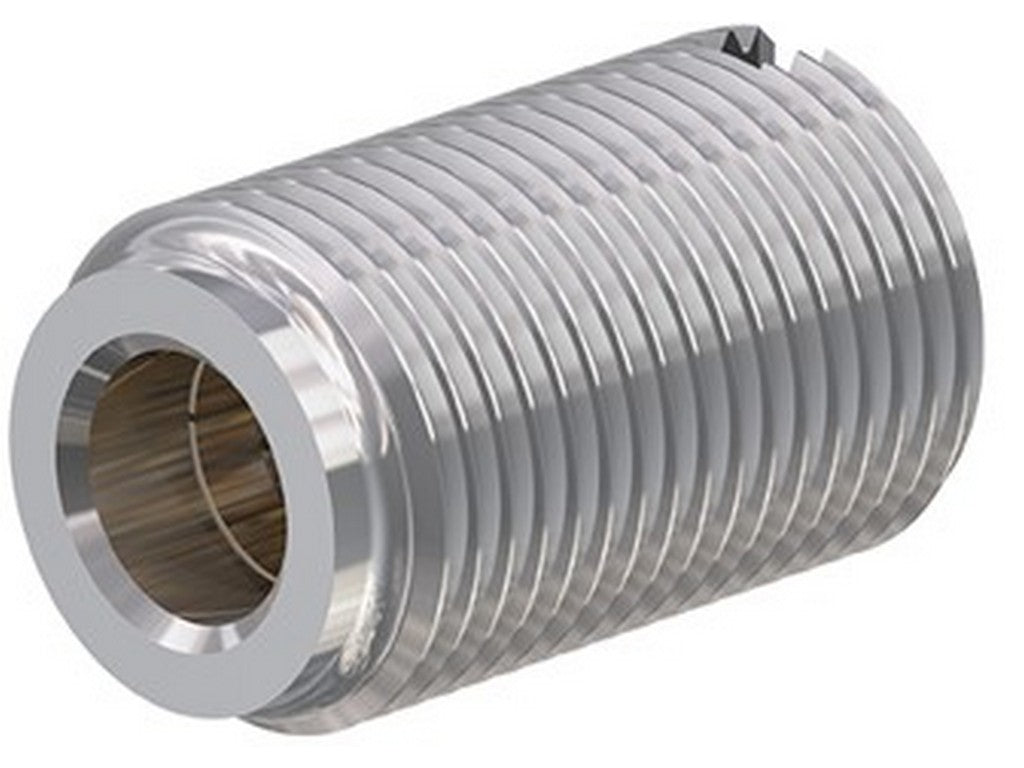

Stäubli 02.0005 contact socket BL6N
The Stäubli 02.0005 is a single-pole, uninsulated contact socket for establishing current-carrying connections in contact blocks and busbars. It belongs to the BL6N series and features a MULTILAM contact with LAIII lamella type, which provides the contact surface inside the connection itself.
In practice, it is used when a robust screw-in solution with a thread is desired, allowing the contact to be firmly mounted in a contact block or in a busbar with a through-hole. The assembly instructions specify M12x1 thread, and for this size, the tightening torque is 10 Nm. It is important to adhere to this as it ensures the connection is assembled correctly and as specified by Stäubli.
The most important data for this size are a rated current of 100 A at 80 °C and 180 A at 150 °C. The contact resistance is specified as 100 µΩ, and a withdrawal force of 20 N and an insertion force of 25 N are provided. Furthermore, the short-circuit current for 1 second is 2.5 kA, and the rated short-time withstand current is 8 kA.
It is therefore a component for fixed, professional power connections where a compact, mechanically secure, and documented contact solution is desired. It requires correct assembly with the tools and parts specified by Stäubli.
Typical applications
- Mounting in contact blocks with internal thread
- Mounting in busbars with through-hole
- Establishment of single-pole, uninsulated current connections
Specifications
- Manufacturer: STAUBLI
- MPN: 02.0005
- Type: BL6N contact socket
- Single-pole and uninsulated
- MULTILAM contact with LAIII lamella type
- Thread: M12x1
- Dimensions: B = 6 mm, C = 19.5 mm, K = 2.5 mm, L = 2 mm, ØD = 9 mm
- Rated current: 100 A at 80 °C
- Rated current: 180 A at 150 °C
- Contact resistance: 100 µΩ
- Tightening torque: 10 Nm
- Withdrawal force: 20 N
- Insertion force: 25 N
- Short-circuit current (1 s): 2.5 kA
- Rated peak withstand current: 8 kA
- See datasheet from the manufacturer
