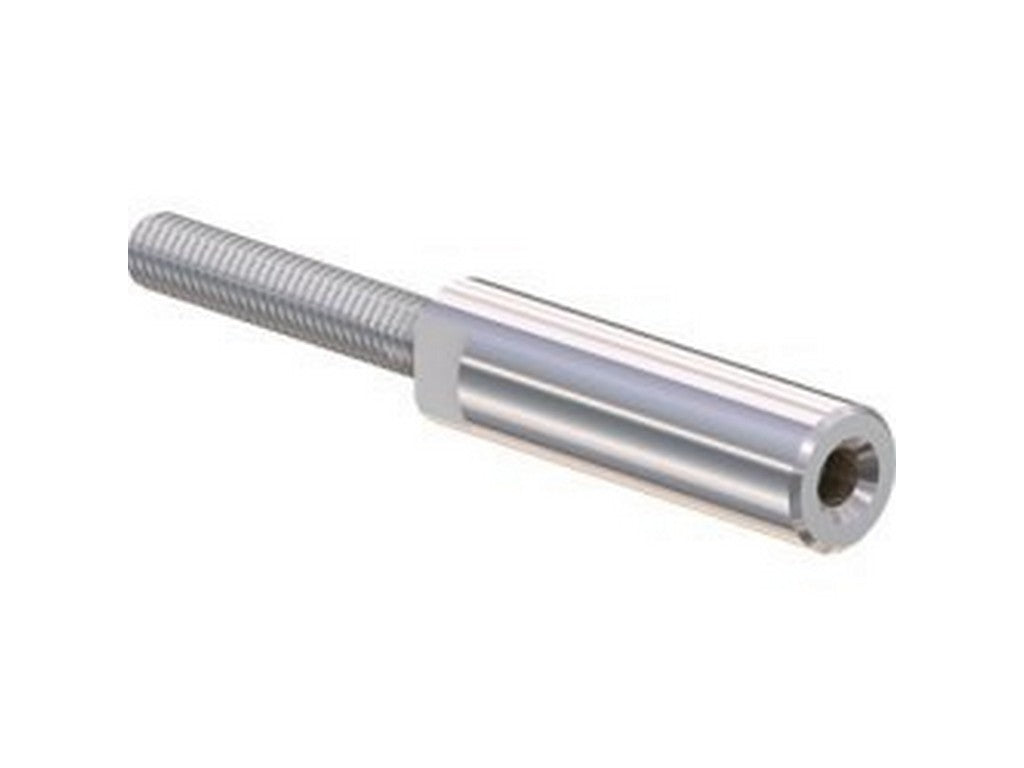

STAUBLI 01.0006
The STAUBLI 01.0006 is a single-pole, uninsulated circular connector of type B8N with a MULTILAM LAI contact. It is used when a compact and robust power connection is desired, capable of transferring high current at a single contact point. It belongs to Stäubli's series of industrial circular connectors for power transmission.
What primarily distinguishes this type is its screwed M8 connection and electrical values, which make it relevant for demanding tasks. It is rated for 130 A at 80 °C and 240 A at 150 °C, and the contact resistance is 60 µΩ. At the same time, it is specified with a short-circuit current of 4.5 kA for 1 second and 3 kA for 3 seconds, as well as a rated peak withstand current of 17 kA. This provides a clear picture of a connector designed for power transmission where stable connections are crucial.
The mechanical dimensions also indicate that it is a relatively small component with a weight of 0.047 kg. It is tightened with a torque of 6.0 Nm. In practice, this is relevant when the connector needs to be mounted correctly and with uniform contact pressure.
As an uninsulated circular connector, it is typically of interest in professional installations where the connection is part of a closed or protected environment, and where power distribution or other energy-intensive connections are used.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 01.0006
- Type: B8N (MULTILAM LAI)
- Series: Single-pole, uninsulated circular connector
- Connection: M8 thread
- ØA: 14 mm
- ØB: 8 mm
- C: 34 mm
- D: 78 mm
- Tightening torque: 6.0 Nm
- Weight: 0.047 kg
- Nominal current at 80 °C: 130 A
- Nominal current at 150 °C: 240 A
- Contact resistance: 60 µΩ
- Short-circuit current for 1 s: 4.5 kA
- Short-circuit current for 3 s: 3 kA
- Rated peak withstand current: 17 kA
