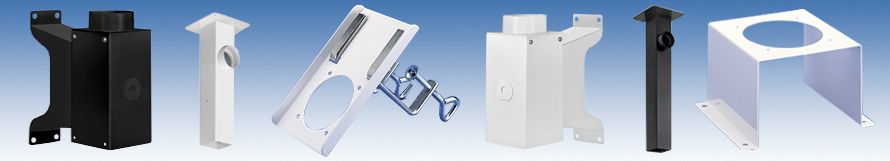

ALSIDENT table bracket 2-6310
The Alsident table bracket 2-6310 is used as a fixed mounting point for System 63 extraction arms when the arm needs to be placed on the edge of a table. It holds the extraction arm in place, ensuring a stable installation suitable for a workplace where extraction needs to be close to the work area.
The bracket is mounted with two clamps on the table edge, avoiding the need to drill holes in the tabletop. This also makes it easier to remove the bracket if the installation needs to be moved or changed. The extraction arm is secured to the bracket with screws.
The bracket is made of bent steel and has polyester powder coating on all surfaces. It is supplied in white and measures 180 x 115 mm.
See datasheet from the manufacturer
Specifications
- Manufacturer: ALSIDENT
- MPN: 2-6310
- For System 63 (Ø63 mm) table-mounted extraction arms
- Mounts on table edge with two clamps
- Can be removed without drilling holes
- Extraction arm secured with screws
- Material: bent steel
- Surface: polyester powder coating (TGIC) on all surfaces
- Colour: white
- Dimensions: 180 x 115 mm
