Product Description

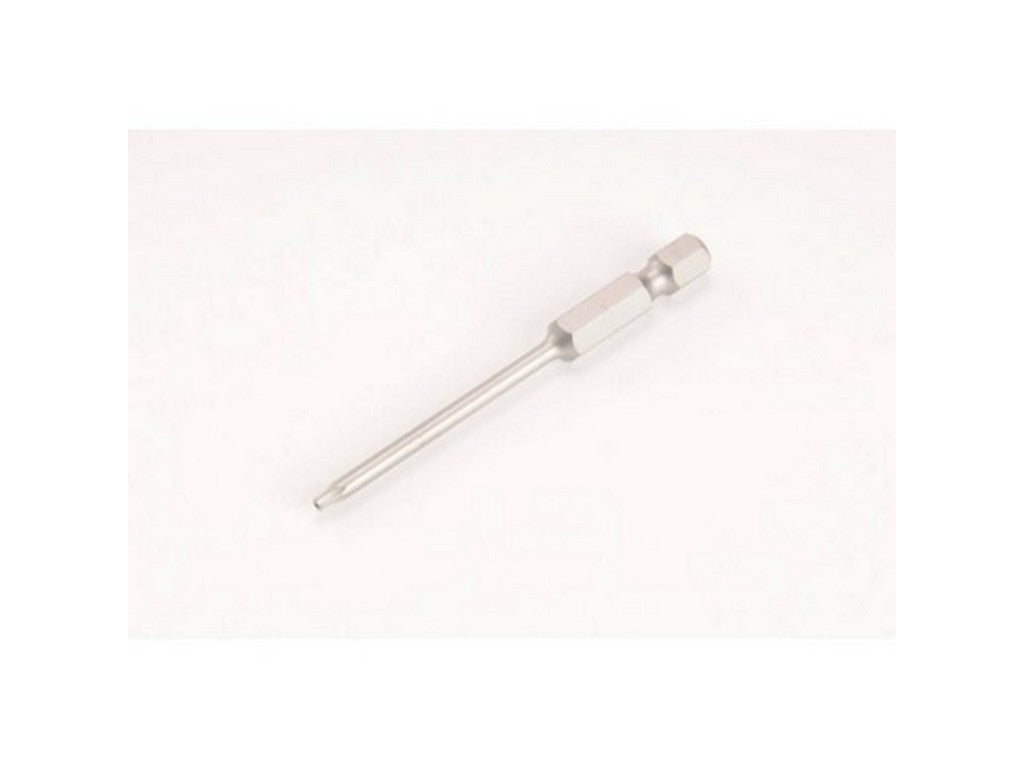

This is a TORX® BO bit designed for security screws with a central security pin. The Wera 05060139001 (867/4 Z) is a TX 8 bit with a blade length of 70 mm and a 1/4" hexagon connection in Wera connecting series 4 (DIN ISO 1173-F 6.3).
Function and Construction
The Wera 05060139001 (867/4 Z) has a bore in the output end, allowing it to accommodate the central security pin in TORX® BO screws. The bit is designated as "tough" for use in hard materials and is part of Wera's Z-series, which, according to the manufacturer, is made for universal screw applications.
Technical Documentation
See datasheet from the manufacturer
Typical Applications
The product's explicit application is to operate/remove embedded TORX® screws with a protruding security pin, where standard TORX® bits without a bore cannot be used. The bit is designed to accommodate the pin through the bore, thereby allowing such security screws to be loosened.
Specifications
- Manufacturer: WERA
- Part number: 05060139001
- Article number: 867/4 Z
- Tip size: TX 8
- Blade length: 70 mm
- Size (stated): 70x7x6 mm
- Connection: 1/4" hexagon drive (Wera connecting series 4, DIN ISO 1173-F 6.3)
- Bore in output end (for security pin in TORX® BO screws)
- Designated as "tough" for use in hard materials
- Weight: 8 g
- EAN: 4013288030733
- Country of origin: CZ
- Customs tariff number: 82079030
