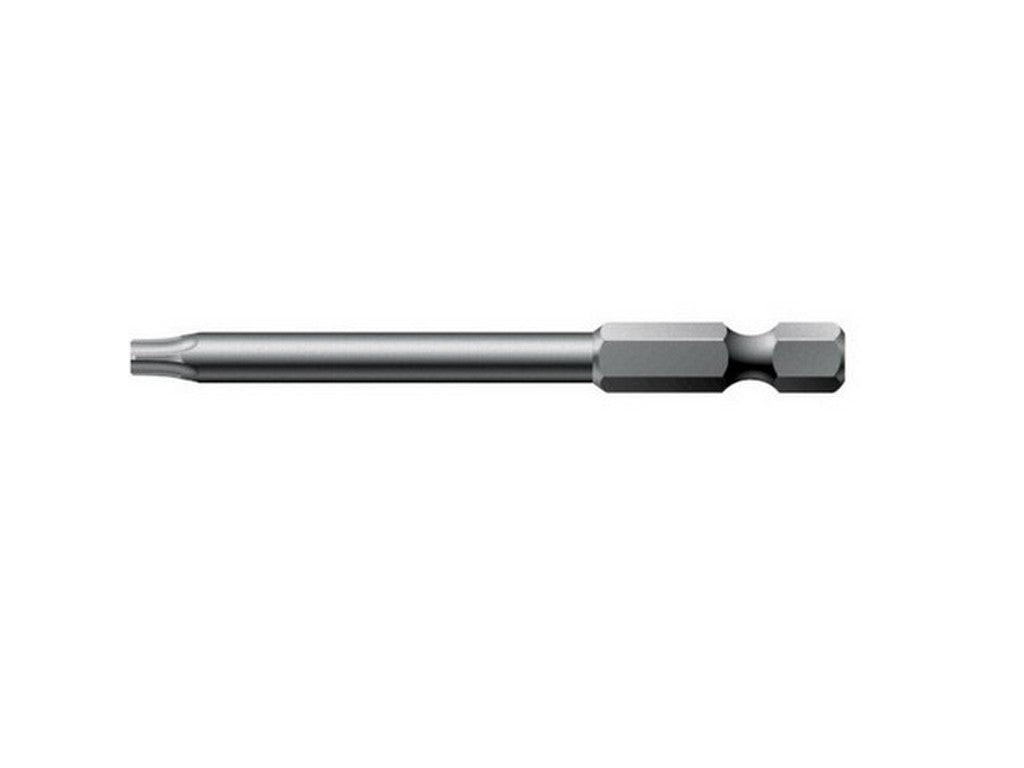

Wera 867/4 Z TORX bit (05060115001)
The Wera 867/4 Z TORX bit, manufacturer part number 05060115001, is a TX25 bit with a 1/4" hexagon drive. The bit is a Z-type (tough / zähhart) designed for recessed TORX® screws and is specified for use in hard materials to reduce the risk of premature tip breakage.What the product is and what it does
This Wera 867/4 Z TORX bit transfers torque from a bit-holding tool with a 1/4" hexagon drive to a TX25 TORX® screw. The bit has an overall length/blade length of 70 mm and a blade thickness/diameter of 6.0 mm for the TX25/70 variant. The "tough" Z-bit construction is specified to increase durability in hard materials and reduce the risk of the tip breaking under load.Documentation
For technical details and version overview, please refer to the manufacturer's family page and datasheet. See datasheet from the manufacturerTypical applications
- Screws: For recessed TORX® screws in size TX25 (explicitly stated).
- Material properties: Suitable for tasks involving hard materials, as the bit is specified as "tough" (zähhart).
Specifications
- Manufacturer: WERA
- Manufacturer part number: 05060115001
- Product family: 867/4 Z TORX®
- Type/size: TX25
- Drive: 1/4" hexagon drive (compatible with DIN ISO 1173-F 6.3)
- Blade/overall length: 70 mm
- Blade diameter/thickness (TX25 70 mm variant): 6.0 mm
- Characteristics: Tough (zähhart) Z-type bit, for recessed TORX® screws in hard materials
The content is AI-generated – we reserve the right for errors.
Contact HIN for further information about the product.
