Product Description

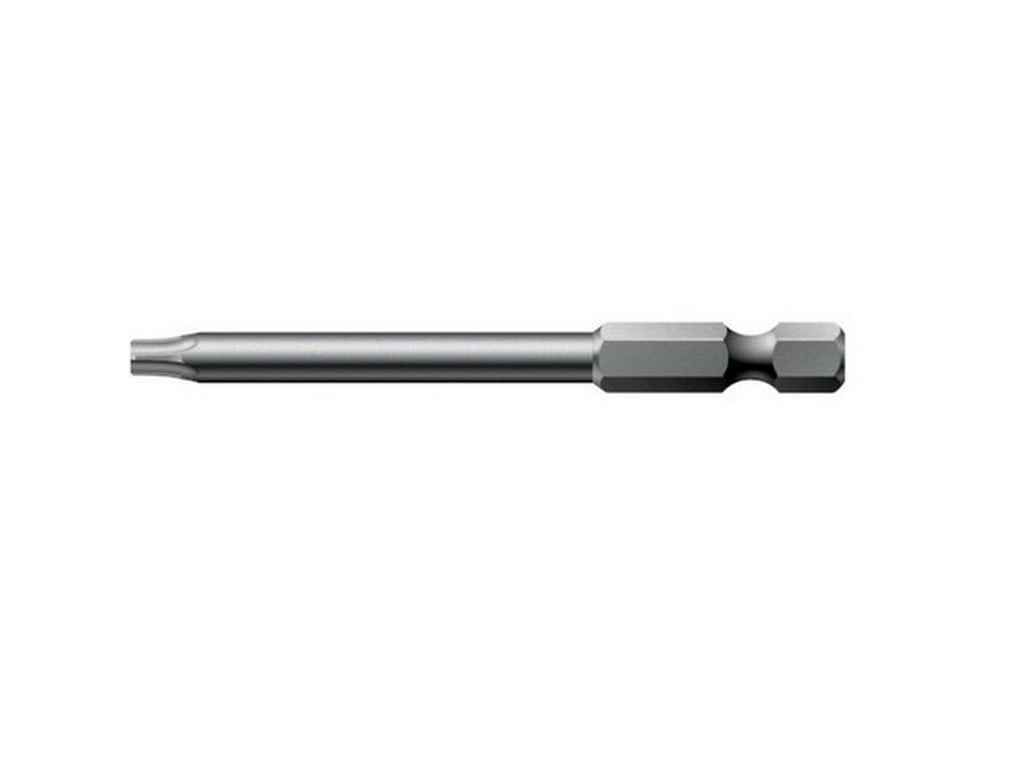

The 867/4 Z TORX® BO bit with bore hole, Wera item number 05060142001, is a single bit designed for working with TORX® BO (tamper-resistant) screws, which have a protruding security pin. The bit is identified as TX20 with a blade length of 70 mm and has a 1/4" hexagon drive that fits holders according to DIN ISO 1173-F 6.3. The bit type is designated as Z (hardened/toughened) and is described for universal use.
Function and compatibility
The 867/4 Z TORX® BO bit with bore hole is designed with a bore hole in the tip, allowing the protruding security pin in a TORX® BO screw to be placed in the hole and permit proper engagement of the TORX profile. The drive end is 1/4" hexagon, making the bit compatible with holders and screwdriver systems that comply with DIN ISO 1173-F 6.3.
- Profiled as TX20 (TORX® BO).
- Blade length: 70 mm.
- Drive end: 1/4" hexagon (DIN ISO 1173-F 6.3).
- Bit category: Z (toughened) — specified for universal use.
- Item number: 05060142001.
Typical Applications
The bit is used to loosen and tighten recessed TORX® BO screws with a protruding security pin. The bore hole design allows for proper engagement of the bit with the screw's secure profile, where a regular TORX bit would not be usable.
Specifications
- Manufacturer: WERA.
- Product name: 867/4 Z TORX® BO bit with bore hole (05060142001).
- Profile/size: TX20.
- Blade length: 70 mm.
- Drive end: 1/4" hexagon (suitable for holders according to DIN ISO 1173-F 6.3).
- Type: Z (toughened) bit, intended for universal use.
- Designed for: Recessed TORX® BO screws with protruding security pin.
