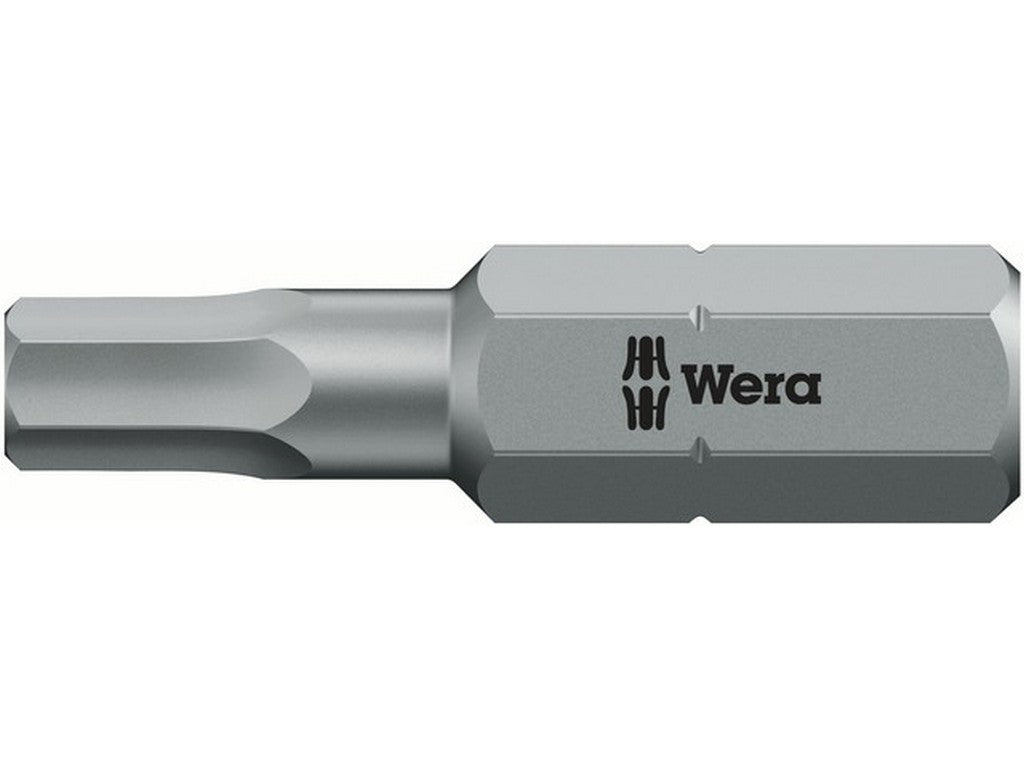

Bit for Hexagon Socket Screws
Wera 840/1 Z Hex-Plus (05056303001) is a replaceable bit designed for hexagon socket screws with a Hex-Plus 1.5 mm tip and a blade length of 25 mm. The bit is part of Wera's 840/1 Z series and is specified as "tough" for use with hard materials. It comes with a 1/4" hexagon drive, compatible with Wera connecting series 1 (DIN ISO 1173-D 6.3).
Function and features
- Hex-Plus geometry: larger contact surfaces in the screw head to reduce the notch effect and minimize damage to the screw head.
- Tough description: the bit is specified to resist premature tip breakage when working in hard materials.
- Dimensions and weight: 1.5 x 25 mm; weight 4 g; physical size noted as 25 x 7 x 7 mm (according to manufacturer's data sheet).
- 1/4" hexagon drive: suitable for tools and holders according to DIN ISO 1173-D 6.3 (Wera connecting series 1).
Typical applications
The manufacturer states that Z-bits from this series are intended for universal screwdriving use and specifically for hexagon socket screws. The Hex-Plus geometry is mentioned as a means to extend the life of screw heads by distributing forces on surfaces rather than corners.
Documentation
See data sheet from the manufacturer
Specifications
- Product: 840/1 Z Hex-Plus bit, 1.5 x 25 mm
- Manufacturer's item number: 05056303001
- EAN: 4013288012623
- Size (stated): 25 x 7 x 7 mm
- Weight: 4 g
- Drive: 1/4" hexagon (Wera connecting series 1, DIN ISO 1173-D 6.3)
- Geometry: Hex-Plus
- Description: "Tough" for use in hard materials
- Country of origin: CZ
