TH bit for Phillips screws
Product Overview

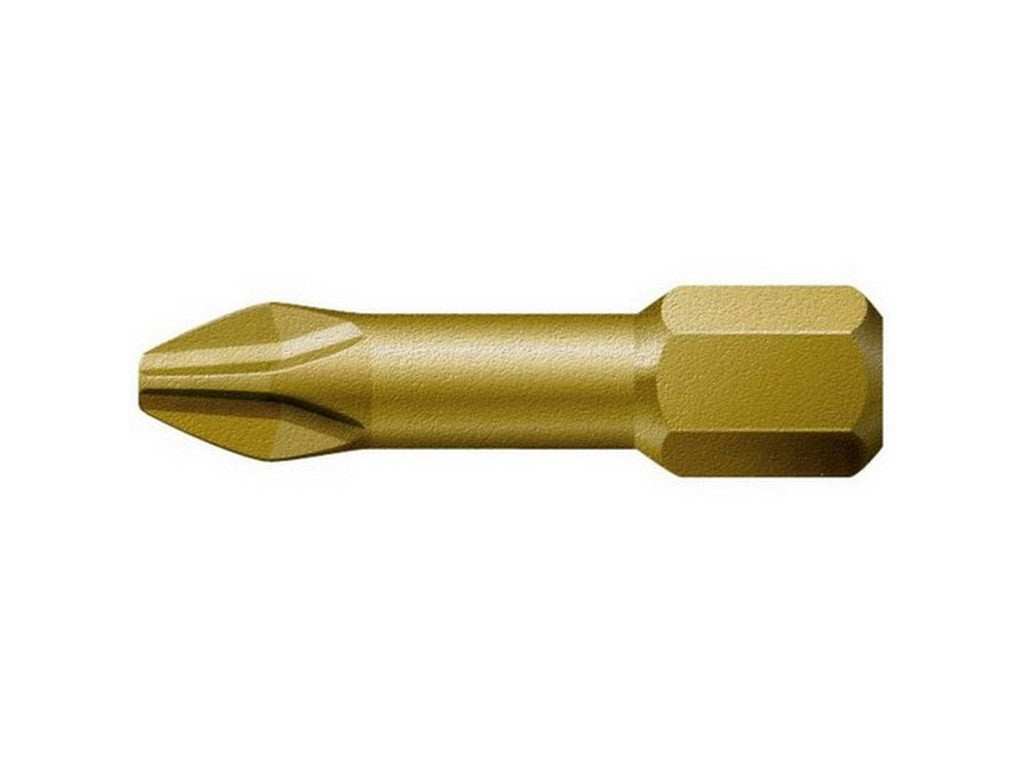

The PH 1 x 25 mm TH bit (Wera part number 05056605001) is a hard bit designed for Phillips screws. The bit has a torsion zone, a length of 25 mm, and a tip size of PH 1. It features a 1/4" hexagon drive in Wera connecting series 1 and is suitable for holders compliant with DIN ISO 1173-D 6.3.
Function and Features
The PH 1 x 25 mm TH bit combines an extra-hard blade construction with a built-in torsion zone, which absorbs peak torque loads. This reduces wear on bits and tips during load peaks and is designed to extend the bit's lifespan with repeated use. The bit is specified as particularly hard with reference to use on semi-hard materials and is manufactured for use with 1/4" hexagon tools.
- Torsion zone for absorbing peak loads
- Extra-hard design (particularly hard for semi-hard materials)
- 1/4" hexagon drive (Wera connecting series 1)
- Suitable for holders according to DIN ISO 1173-D 6.3
Documentation
The product's technical details and official information can be found in the manufacturer's datasheet:
See datasheet from the manufacturer
Typical Applications
The PH 1 x 25 mm TH bit is used for driving Phillips screws where absorption of peak torque loads and extended bit life are desired. The bit is intended for use with tools and holders featuring a 1/4" hexagon drive.
Specifications
- Product: PH 1 x 25 mm TH bit (Wera part number 05056605001)
- For: Phillips screws
- Tip size: PH 1
- Blade length: 25 mm
- Drive: 1/4" hexagon drive (Wera connecting series 1)
- Feature: Torsion zone for absorption of peak loads
- Material hardness: Extra-hard; particularly hard for semi-hard materials
- Compatibility: Suitable for holders according to DIN ISO 1173-D 6.3
- Weight: 4 g
- Item number: 851/1 TH PH
- Manufacturer part number: 05056605001
- EAN: 4013288013545
- Country of origin: CZ
