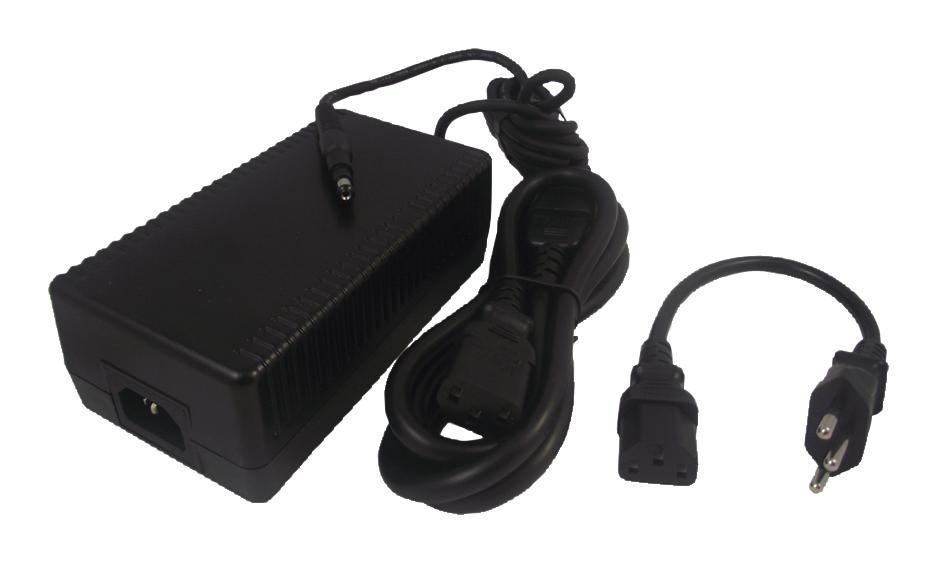

FLUKE BC190/830
The FLUKE BC190/830 is a universal AC adapter for Fluke 190-Series ScopeMeter test instruments. It is used when the instrument needs to be powered from the mains and charged simultaneously. This makes it practical in measurement situations where interruptions are to be avoided and where the test tool needs to run for extended periods.
The adapter operates with a wide input voltage range of 100 to 240 Vac and 50/60 Hz, so it can be used in many countries with the included power cords and plug adapters. On the output, it delivers 17.8–18 V DC with up to 840 mA via a 5 mm power plug, where the outer contact is positive. A 2 m output cable is also included, making it easy to position relative to the workbench or measurement setup.
In practice, it is a spare part and accessory for the current Fluke ScopeMeter instruments, not a common universal charger for all electronic equipment. It is designed to fit precisely the test tools that specify BC190 for charging and operation. At the same time, it is built as a switch-mode adapter with low standby consumption and meets Level VI requirements, which is relevant in professional environments where both operational reliability and power consumption play a role.
During measurements, an external power supply can affect the instrument's connection to ground. Fluke has therefore incorporated decoupling networks to reduce this influence, but for very low measurements, battery operation without the adapter connected is recommended. This is worth considering when working with sensitive measurements.
Typical Applications
- Operating and charging Fluke 190-Series ScopeMeter test tools
- Continuous measurements and recording where the instrument needs to be connected to the mains
- Use in workshop, service, and laboratory environments
Specifications
- Manufacturer: FLUKE
- MPN: 4821057
- GTIN/EAN: Not stated in verified data
- Input voltage: 100 Vac to 240 Vac, ±10 %
- Input frequency: 50/60 Hz ±10 %
- Output voltage: 17.8–18 V DC
- Output current: 0–840 mA
- Output power: approx. 15 W
- Output cable: 2 m
- Output plug: 5 mm power jack, DIN 45232
- Polarity: outer contact positive
- Mains inlet: IEC 60320-1 type C8
- Power cords: universal set with 2-wire cords
- Housing material: heat-resistant ABS
- Weight: 0.35 kg
- Protection class: IP40
- Operating temperature: 0 °C to 50 °C
- Storage temperature: -40 °C to +70 °C
- Safety: IEC 61010-1, IEC 61010-2-030, CAT IV 600 V, Pollution Degree 2
- EMC: IEC 61326-1
- Datasheet: See datasheet from manufacturer
