Product Overview

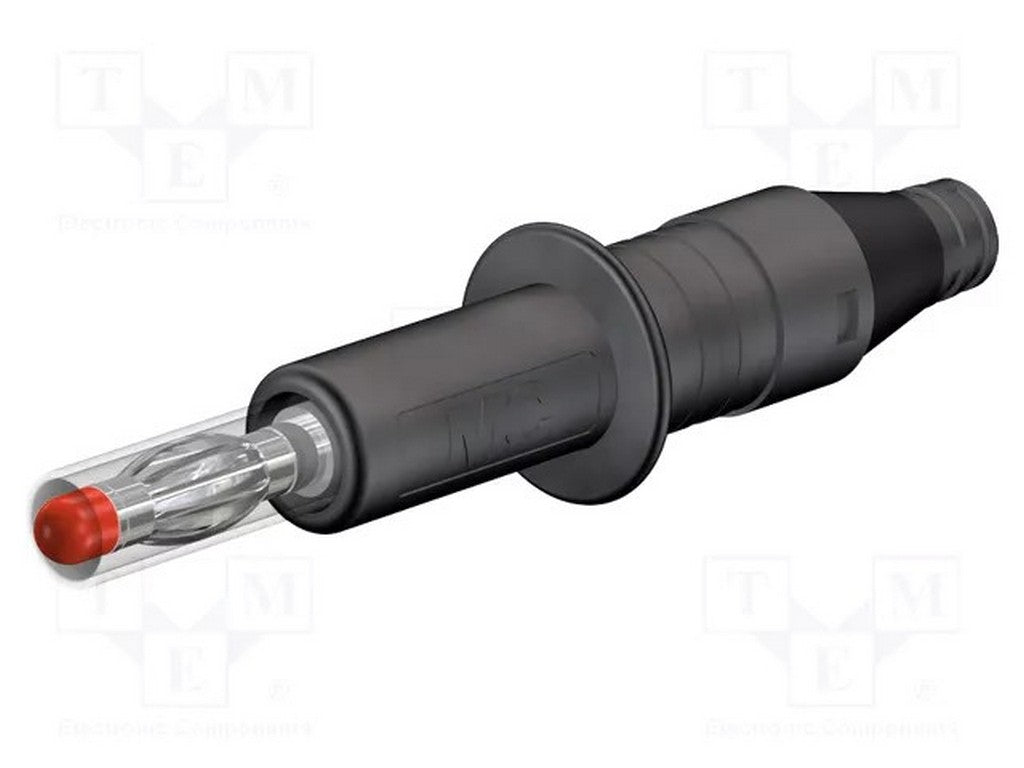

This X-GL-438 from STAUBLI is an inline Ø 4 mm plug designed for self-assembly of test leads. The plug features a spring-loaded MULTILAM contact, a retractable sleeve, and a protective collar to prevent accidental contact and ensure the necessary air and creepage distances for operation up to 600 V, CAT II.
Construction and Materials
- Contact type: spring-loaded MULTILAM
- Base contact material: CuZn
- Contact surface: Ni (nickel)
- Connection: screw terminal
- Retractable sleeve and protective collar for protection against accidental contact
Typical Applications
The product is intended for self-assembly of test leads and for secure connection of test leads up to 600 V, CAT II. According to the manufacturer, the design also allows for the connection of test leads to older measuring instruments that are not equipped with safety sockets.
Performance
- Rated values: 600 V, CAT II
- Current rating: 32 A
- Acceptable cable diameter: max. Ø 3.9 mm (max. 2.5 mm²)
- Plug diameter: 4 mm
Specifications
- Product name: X-GL-438
- Manufacturer part number / Article number: 66.9584-* (specified by manufacturer)
- Plug system diameter: 4 mm
- Rated data: 600 V, CAT II; 32 A
- Contact material: CuZn with Ni surface
- Connection type: screw
- Max cable diameter: 3.9 mm (max 2.5 mm²)
- Specified in manufacturer's datasheet dated 08.2022
- Measurement accessories according to IEC EN 61010-031 (specified in manufacturer's documentation)
