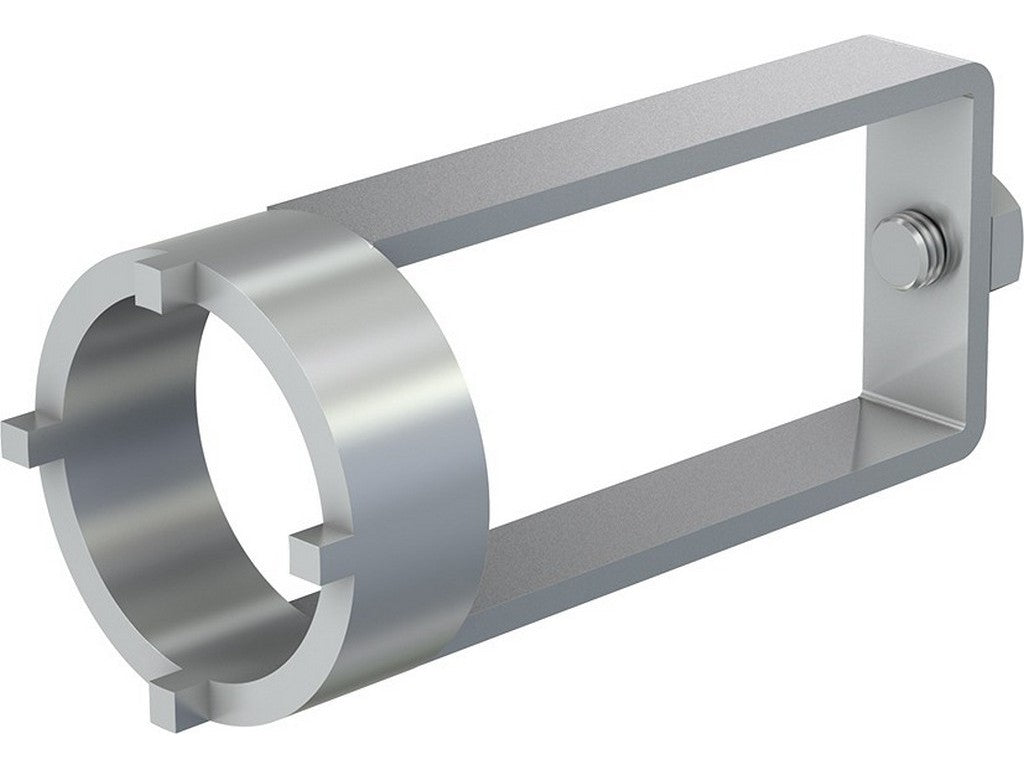

STAUBLI 14.5189
The STAUBLI 14.5189 is a socket wrench for use with a torque wrench. It is used when assembling the Stäubli 10BV single-pole connector system, where it fits ID/S10BV-C... panel receptacles. The purpose is to correctly tighten the ring nut, thereby avoiding overtightening the thread with ordinary tools.
In practice, it is an assembly aid that makes the work more controlled when the connector needs to be fastened in a front plate or panel. Stäubli specifies a tightening torque of 10 N m when using the tool. When working with ordinary tools, it is stated that two tools must be used.
It is therefore not a general wrench for all purposes, but a special tool for a very specific task in the 10BV system. This is especially relevant when you want to mount the connection according to the manufacturer's instructions and avoid overtightening.
See data sheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 14.5189
- Type ID10BV-WZ
- Socket wrench for torque wrench
- Wrench size: SW17
- For Stäubli 10BV single-pole connector system
- Suitable for ID/S10BV-C... panel receptacle sockets
- Tightening torque: 10 N m
- Order No.: 14.5189
