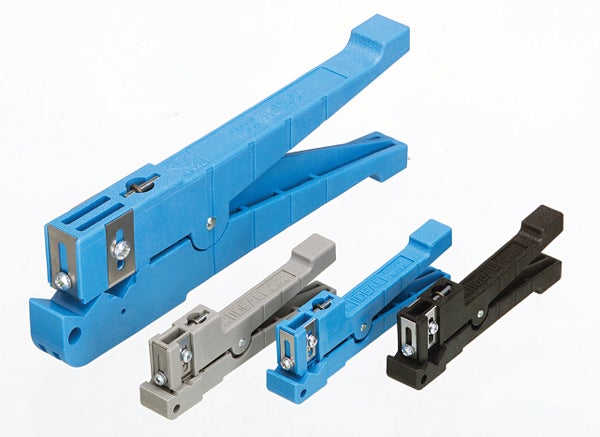

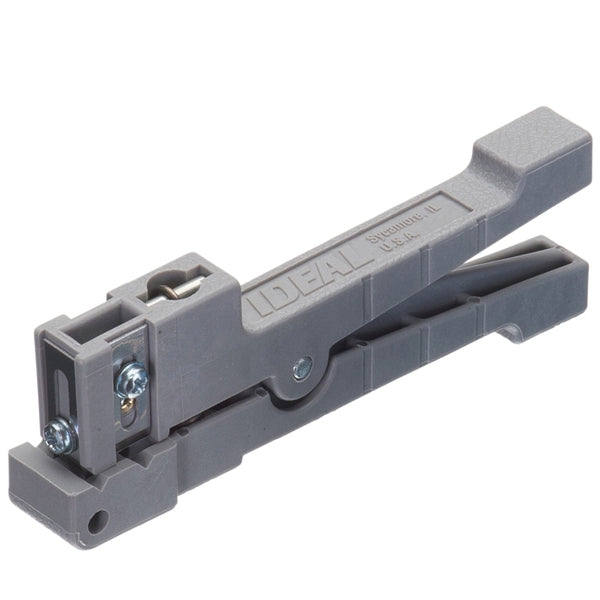

IDEAL Adjustable Blade Ringer™ Stripper
The IDEAL Adjustable Blade Ringer™ Stripper is a stripping tool for round cables that can work on both the cable jacket and further inside on the conductor. It is used when making a clean opening in the insulation without cutting too deep. The tool is designed for conductors and cable jackets up to 3.2 mm in diameter.
What is special about this model is that the cutting depth can be adjusted with two adjustable depth knives and an adjustable circular slitting knife. This makes it possible to adapt the cut to the specific cable type. The blade spacing of 6.1 mm allows for both two-step stripping and so-called window stripping, where the insulation is opened at a specific point on the cable.
In practice, it is a tool for everyday professional use, where work needs to be done quickly, but still controlled. The included straight blades are mounted from the start, and there is also a curved blade on the tool's body. If blades need to be changed, use L-9225.
The IDEAL Adjustable Blade Ringer™ Stripper is therefore relevant when precise stripping of round cables is required, and where it is an advantage to be able to adapt the tool to different tasks. See datasheet from the manufacturer
Typical applications
- Stripping of round cable jackets
- Stripping of inner conductors
- Two-step stripping
- Window stripping
Specifications
- Manufacturer: IDEAL-INDU
- MPN: WL12957
- SKU: 45-162
- Cable range: up to 0.125 in / 3.2 mm
- Blade spacing: 0.240 in / 6.1 mm
- Included blades: three straight blades mounted and one curved blade on the body
- Replacement blades: L-9225
- Warranty: Limited 1 Year
