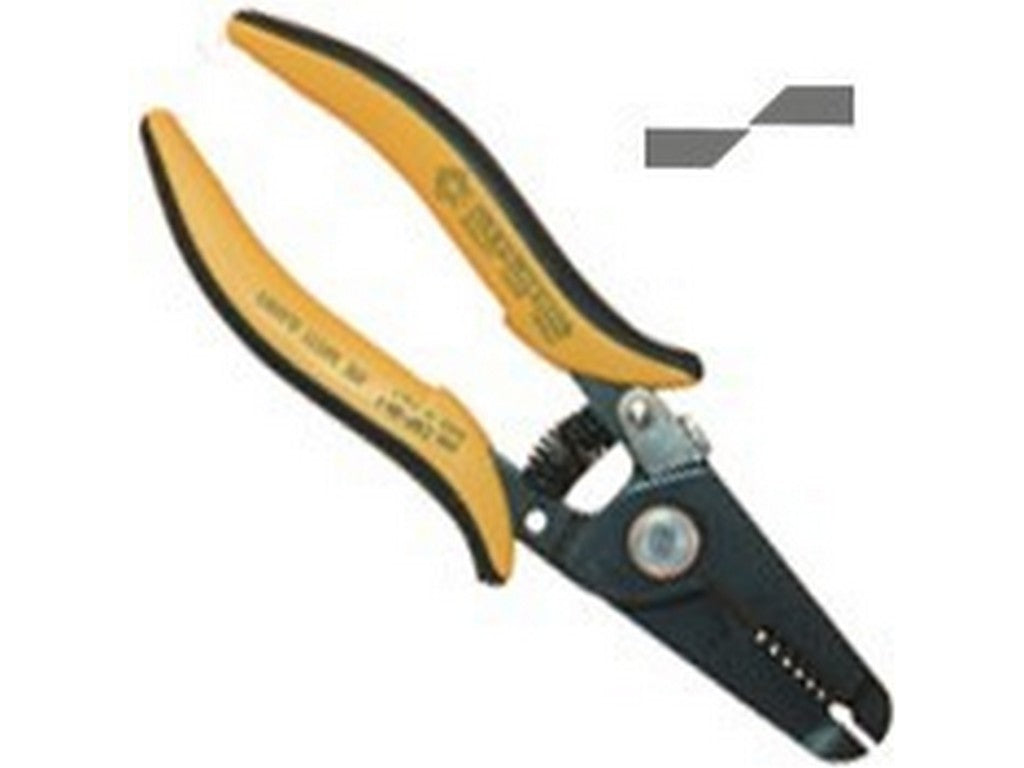

Product Overview
This all-purpose tool from PIERGIACOM, the CSP 30.1, functions as scissors, multi-diameter wire strippers, and pliers. The manufacturer specifies the CSP 30.1 as a strong, versatile hand tool with multiple functions integrated into one unit, capable of handling conductors within the specified diameter range.Features
- Scissor function
- Multi-diameter wire stripper
- Pliers
Typical Applications
- Stripping conductors with the specified diameters: 0.2 mm (30 AWG), 0.3 mm (28 AWG), 0.4 mm (26 AWG), 0.5 mm (24 AWG), 0.6 mm (22 AWG), and 0.8 mm (20 AWG).
- Trimming/cutting using the scissor function.
- Manipulation or gripping using the plier function.
Material and Construction
The manufacturer specifies a steel thickness of 3 mm and handle model S. The CSP 30.1 is described as a very strong all-purpose tool. A version with ESD-safe handles in grey/black is available, designated as code CSP 30.1 D.
Sources
Source: Piergiacomi product page
Specifications
- Product name: CSP 30.1.
- Manufacturer: PIERGIACOM.
- Manufacturer's part number: CSP 30.1 D (specified as a version with ESD handles).
- Stripping diameters: 0.25–0.81 mm (also specified as AWG 30–20) and specified spot diameters: 0.2 mm (30 AWG), 0.3 mm (28 AWG), 0.4 mm (26 AWG), 0.5 mm (24 AWG), 0.6 mm (22 AWG), 0.8 mm (20 AWG).
- Weight: 102 g.
- Length: 165 mm.
- Steel thickness: 3 mm.
- Handle model: S.
- Functions: scissors, multi-diameter wire strippers, and pliers.
Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
