Reducer adapter R4/2 from STAUBLI
Technical overview

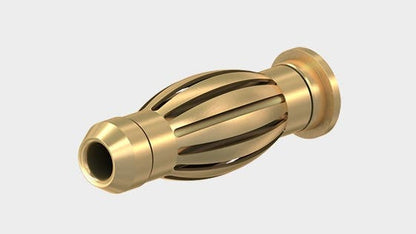

The reducer adapter R4/2 (item number 24.0110) is an uninsulated reduction adapter that connects a Ø 4 mm plug with a Ø 2 mm socket. The adapter is made of brass with a spring-loaded MULTILAM contact on the 4 mm side and a Ø 2 mm rigid socket, which accepts spring-loaded Ø 2 mm plugs. It is pluggable from both sides.Materials and contact
- Base material of contact: CuZn (brass)
- Electrical contact surface: gold plated (Au)
Documentation
For technical details and official documentation: See datasheet from the manufacturer.
Typical applications
The reducer adapter R4/2 is listed as test accessory according to IEC EN 61010-031 and is used for reduction between Ø 4 mm and Ø 2 mm test connections. It is used as a mechanical and electrical transition adapter where a pluggable connection between 4 mm and 2 mm plugs is required in test setups.
Specifications
- Item number: 24.0110
- Type: Reducer adapter R4/2
- Diameter plug-system: 4 mm; 2 mm
- Design: Uninsulated Ø 4 mm plug with spring-loaded MULTILAM; Ø 2 mm rigid socket (accepts spring-loaded Ø 2 mm plugs); pluggable on both sides
- Rated values: 30 V AC / 25 A; 60 V DC / 25 A
- Electrical contact surface: Au (gold)
- Base material electrical contact: CuZn (brass)
- Listed as test accessory according to: IEC EN 61010-031
- Datasheet date: 08.2022
