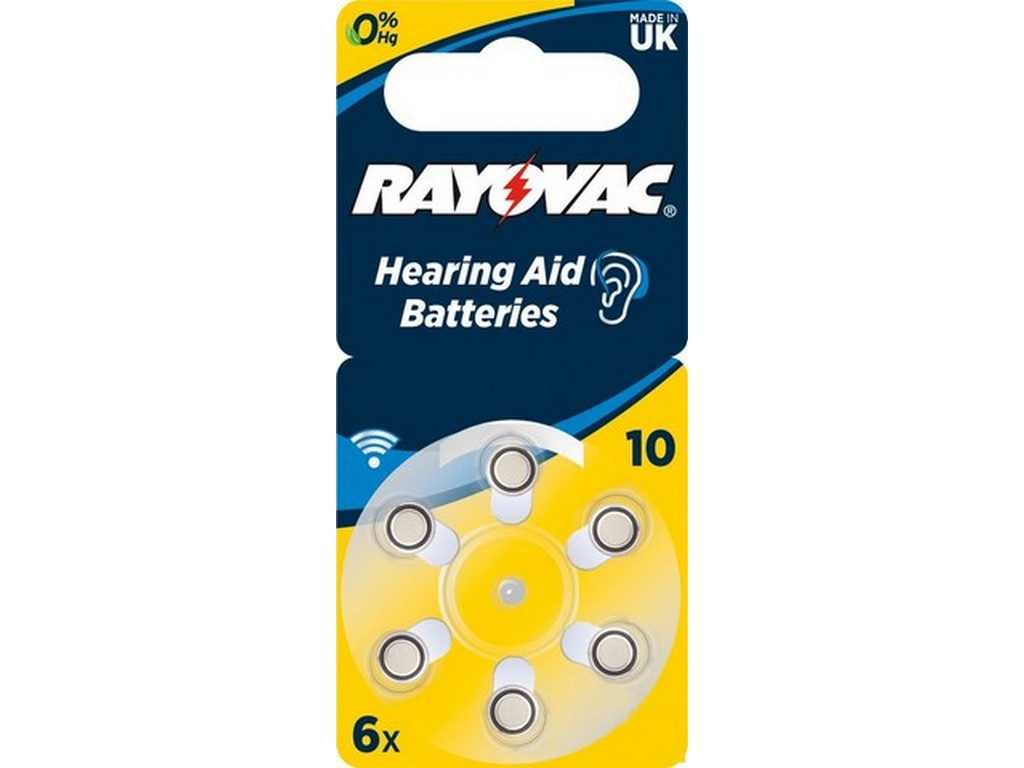

RAYOVAC 4610945416
RAYOVAC size 10 is a small zinc-air battery for hearing aids. It is used in devices that require a stable and compact power source, and where the battery size and voltage must precisely match the device. This is the well-known size 10, also referred to as PR70 in the IEC system and 7005ZD in the ANSI system.
In practice, this means the battery is designed for hearing aids and similar instruments that work with very small batteries and require safe, consistent operation. The battery is only activated when the plastic tab is removed, and it must sit for one minute before use. This is an important everyday detail, as zinc-air batteries only supply power correctly once exposed to air.
The nominal voltage is 1.45 volts. According to the datasheet, the battery has a weight of 0.31 grams, a volume of 0.08 cc, and an impedance of less than 9.0 ohms at AC 1000 Hz. The battery is rated for a temperature range of -10 °C to 50 °C.
The shelf life is four years when the tab is attached and the battery is stored at 21 °C. This makes it easier to keep stock on hand without needing to rotate batteries quickly.
Typical applications
- Hearing aids
Specifications
- Manufacturer: RAYOVAC
- MPN: 4610945416
- Type: zinc-air hearing aid battery
- Size: 10
- IEC designation: PR70
- ANSI designation: 7005ZD
- Nominal voltage: 1.45 V
- Weight: 0.31 g
- Volume: 0.08 cc
- Impedance: < 9.0 ohms at AC 1000 Hz
- Shelf life: 4 years with tab attached at 21 °C
- Activation: remove the plastic tab and let the battery sit for 1 minute
- Operating temperature: -10 °C to 50 °C
- EAN/GTIN: not specified in verified data
